Specifications

Brand	Circutor
Series	computer C Wi-Fi
Nominal Current (In)	… / 5 A
Nominal Voltage (AC Primary)	230 V ~ (±10 %)
Type of Electric Connection	Connect preferably to phase L1
Rated Frequency	50 … 60 Hz
Mechanical Life	1x107 cycles
ETIM 9.0 Class	EC002758
Installation Category (AC Supply)	CAT III 300 V
Permanent Overload (Electrical)	+ 20%
Permanent Overload (Per Transformer)	+ 20%
Phase Current Measuring Range	0.05 ... 5A
Phase Voltage Measurement	1%
Phase Current Measurement	1%
Phase Angle f	2 % ± 1 digit
Quantity (Relay Outputs)	12 + 1 (Alarm)
Max. Open Contact Voltage	250 V~
Max. Current (Relay Outputs)	1 A~
Max. Switching Capacity	250 W
Electrical Life at Maximum Load	1x105 cycles
Envelope	Plastic V0 self-extinguishing
Fastening/Setting	Panel
Cable Gauge at Current Terminals	&ge;1,5 mm²
Cable Gauge at Power Supply Terminals	&ge;1,5 mm²
Working Temperature	-20 … +60 ºC
Protection Class	IP 30 / Front Panel: IP 40 IK 08
Electrical Safety, Contamination Level/Class	Pollution resistance 2
Electrical Safety, Insulation	Double-insulated electric shock protection class II (IEC 61010-1)
AC Power Consumption	4,7 VA
Nominal Voltage (AC Supply)	230 V ~ (±10 %)
Cable Gauge at Input and Output Terminals	&ge;1,5 mm²
Keyboard	3 keys
Depth	54.85 mm
Height	144 mm
Weight	0.61 kg
Width	144 mm
Electrical Safety, Maximum Height (M)	2000
Relative Humidity (Without condensation)	5 … 95 %
Storage Temperature	-20 … +70 ºC
Resolution of the Display	3 digits
Standards	IEC 61010, IEC 61000-2-30, IEC 61000-6-4, IEC 61000-6-2

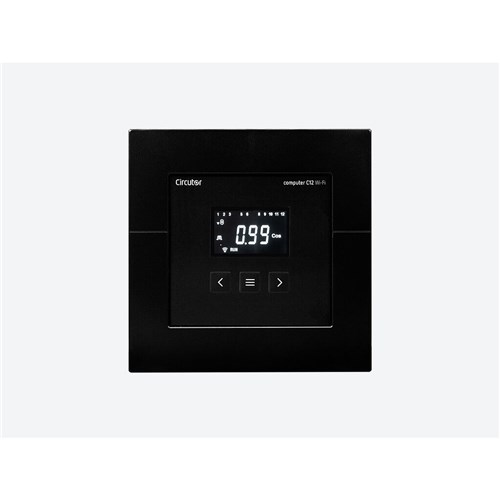

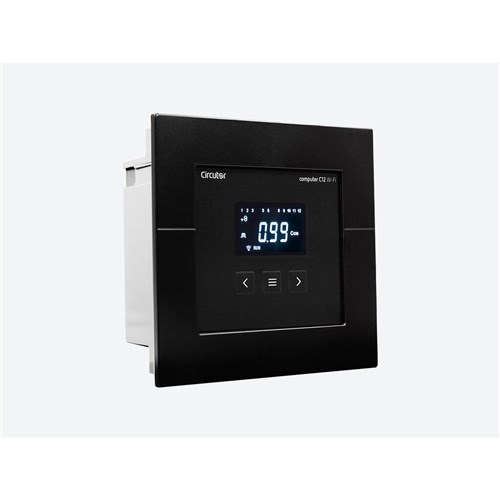

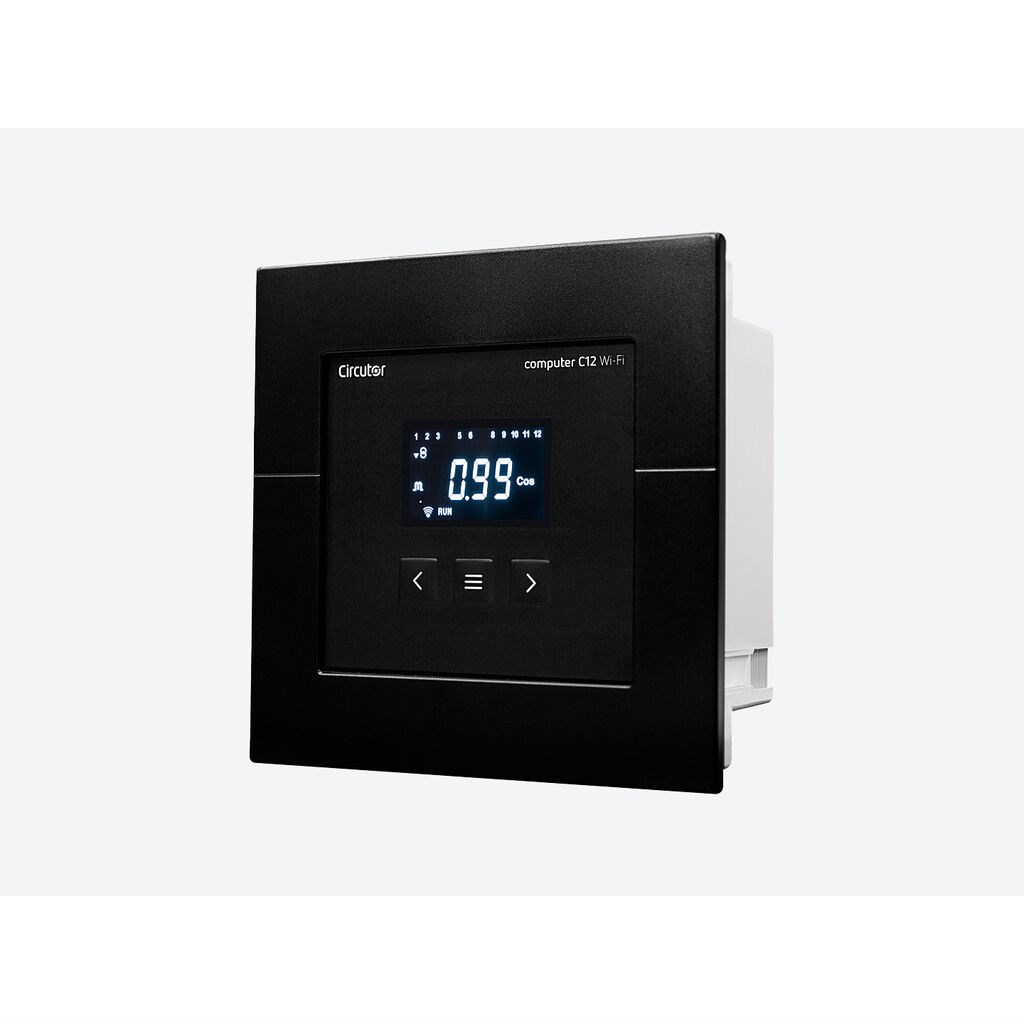

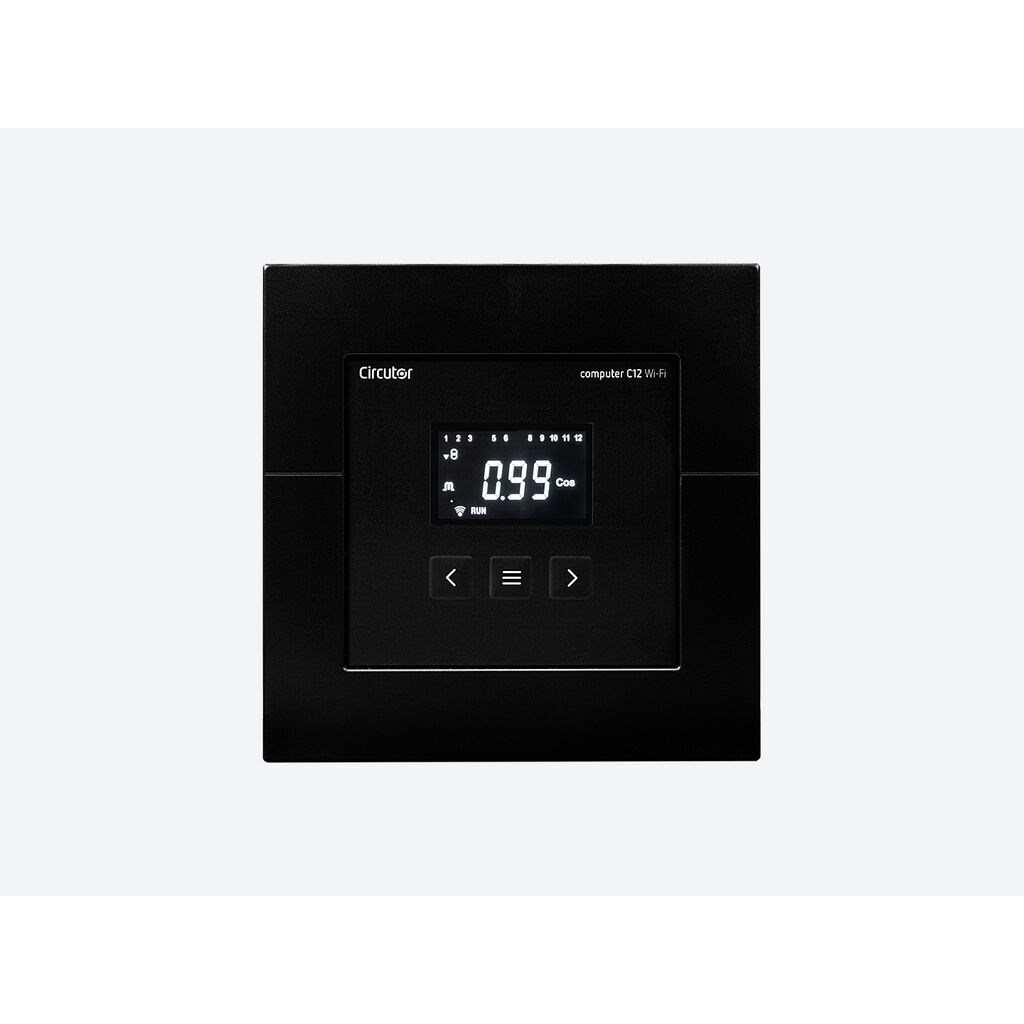

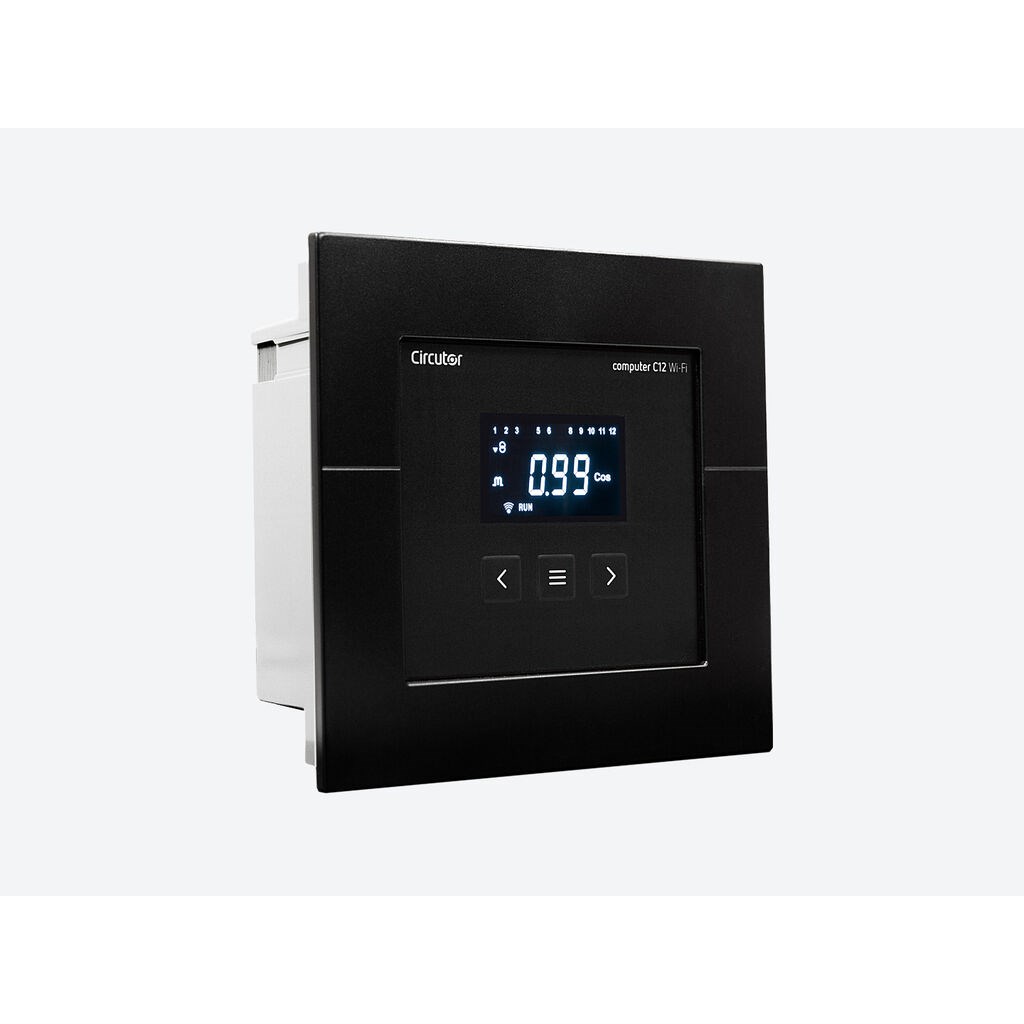

CIRCUTOR R148420020000 PFC C12 WIFI 12-STEP WIFI REGULATOR computer C12 Wi-Fi
