Specifications

Brand	Circutor
Series	OPTIM FRM
ETIM 9.0 Class	EC002758
Surge	22 % 8 h over 24 h 15 % up to 15 min over 24 hours 20 % up to 5 min over 24 hours 30 % up to 1 min over 24 hours
Discharge Resistance	75 V / 3 min
Losses (W)	Dielectric: < 0.2 W/kvar Total: < 0.5 W/kvar
Reinforcement Voltage	440 V
Element	Individual protection of each step with fuses with high rupture power (HRP). NH-00 Series.
Permanent Overload (Per Transformer)	1.3 In
Fastening/Setting	Vertical
Thermal Management	Natural or forced according to options
Protection Class	IP 21
Tolerance	±10 %
Components	CF Capacitor General tripolar circuit breaker for protection. Waste filters tuned to 189 Hz to protect harmonics present in the network and avoid resonance phenomena with harmonics of order 5 or more. It incorporates a thermostat to disconnect the step in case of high temperature (90 ºC).

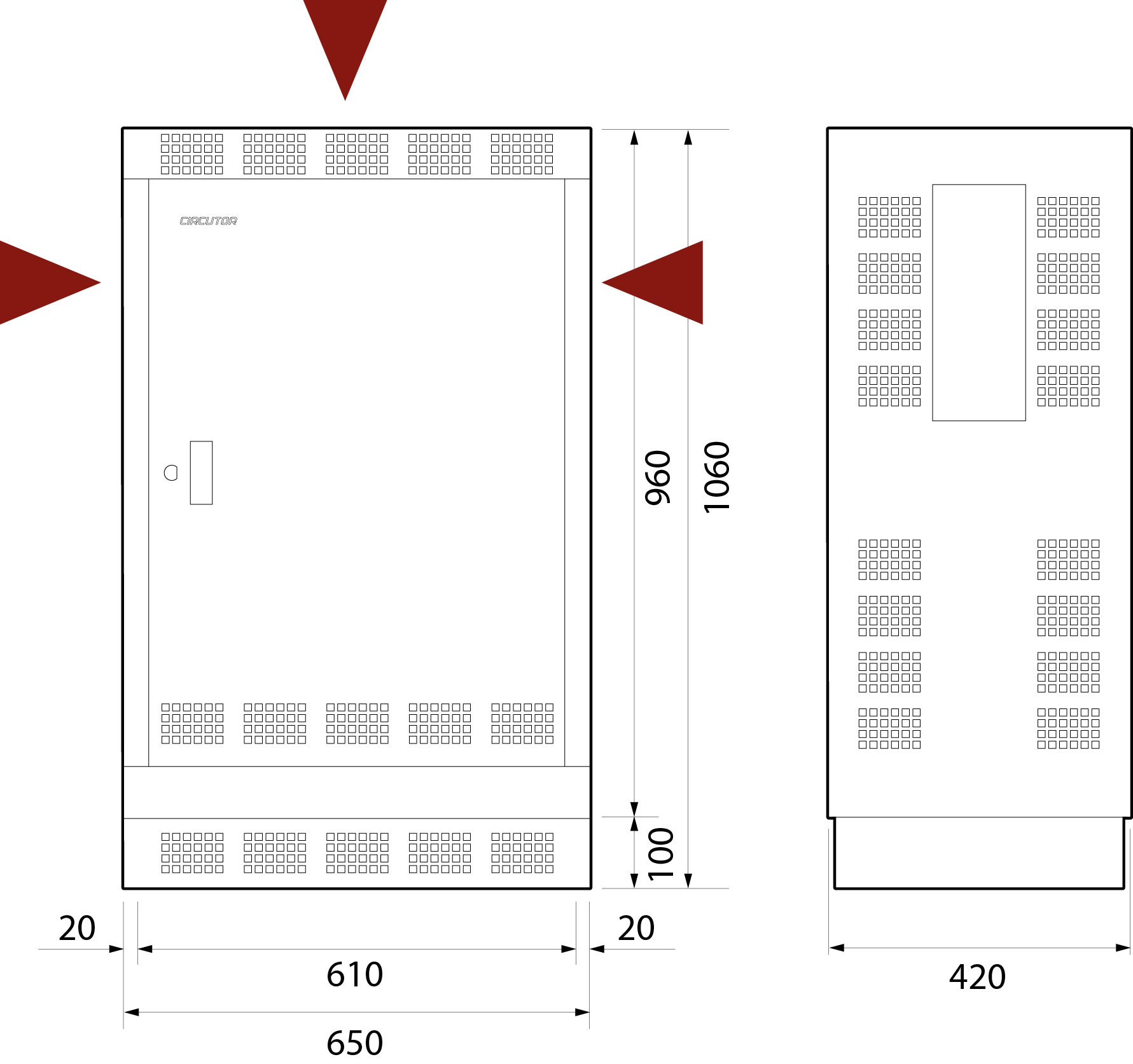

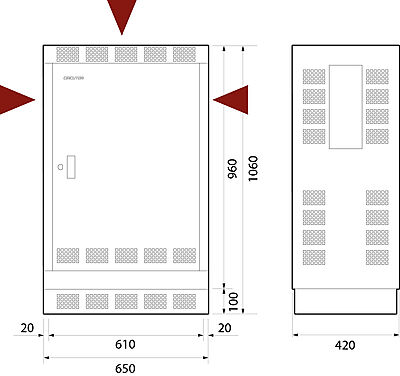

Depth	420 mm
Height	1060 mm
Weight	110
Width	650 mm
Electrical Safety, Maximum Height (M)	2000 m
Relative Humidity (Without condensation)	80%

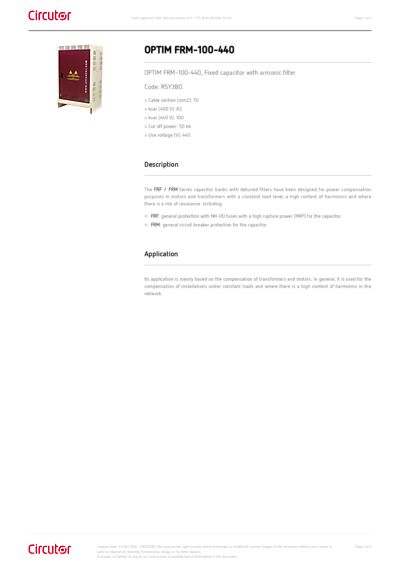

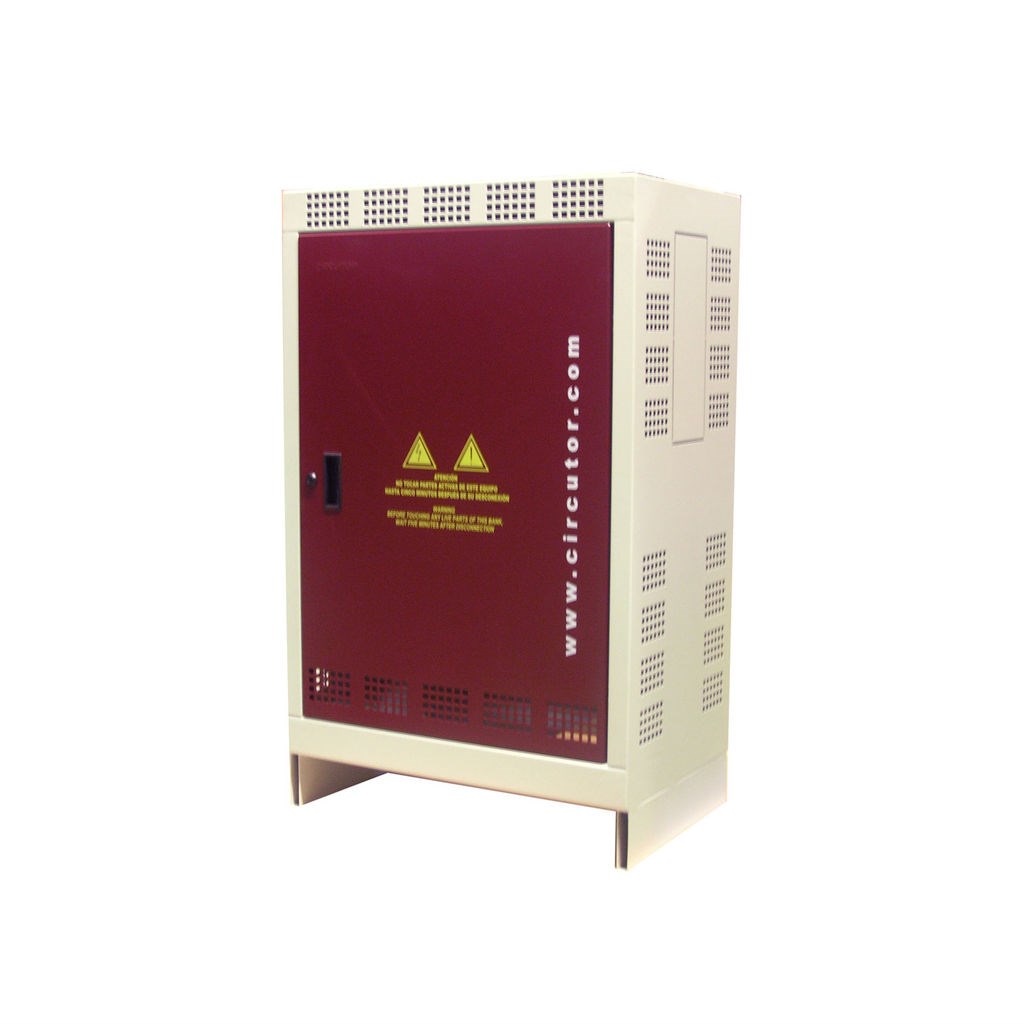

CIRCUTOR R5Y3B0 OPTIM FIXED FILT 100 kVAr 440V W/MCCB OPTIM FRM-100-440
