Specifications

Brand	Circutor
Series	AFQm-C
Connection Type	Network: M8 ring terminal, Ground: M10 ring terminal, Current: 6-pole connector, RS-485: 3-pole connector, Ethernet: RJ-45
Max. Phase Current	210 A (RMS)
Nominal Voltage (AC Primary)	208 … 550 V~ F-F (± 10 %)
Earthing System	TN, TT
Rated Frequency	50 / 60 Hz (± 5 %)
Rated Power	250950 VA
Rated Conditional Short-Circuit Current (Inc)	40 kA
ETIM 9.0 Class	EC002758
Installation Category (AC Supply)	4 kV, CAT III Class 1
Rated Peak Current Ipk	84 kA
Current Crest Factor	2:1
Transformation Ratio	5 … 5000 / 5A
Voltage Harmonics (THD)	25 % (max)
Technology / Type (Serial)	RS-485
Protocol (Serial)	Modbus/RTU
Protocol (Network)	TCP/IP, Modbus TCP
Filtering / Response Time	2º … 50º harmonic (selectable) / < 100 µs
Parallel Assembly / Installation	Up to 100 devices of different caliber. Connection of transformers only in Master unit.
Priority Scheduling	Selectable
Phase Compensation	Selectable
Cable Gauge at Current Terminals	2.5 mm²
Cable Gauge at Power Supply Terminals	Grid: Ø 23 mm
Communications Cable Cross-Section	RS-485: 2.5 mm²
Working Temperature	-10 ... +45 ºC
Protection Class	IP 21 (IP 41 on demand) / IK10
Depth	812 mm
Height	1890 mm
Weight	306
Width	608 mm
Electrical Safety, Maximum Height (M)	5000
Technology / Interface	Ethernet
Relative Humidity (Without condensation)	0 ... 95 %
Storage Temperature	-20 ... +50 ºC
Noise (dB)	< 76 dBA
Display Type	TFT color, 3.5" touchscreen
Rated Diversity Factor (RDF), Simultaneity	1
Reactive Power Compensation	Selectable

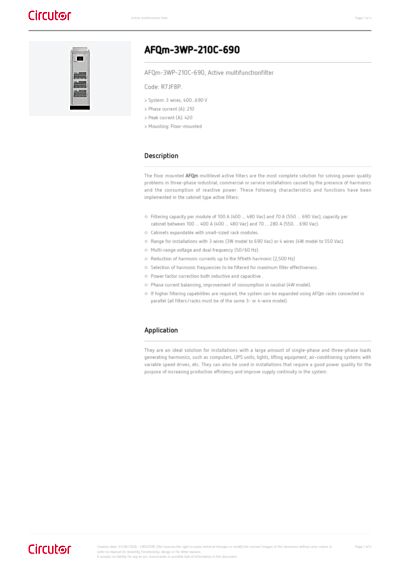

CIRCUTOR R7JF8P AFQM ACTIVE FILTER 210A 690V 3-WIRE CABINET AFQm-3WP-210C-690
