Specifications

Brand	Circutor
Series	OPTIM-SVGm
Earthing System	TN, TT
Rated Frequency	50 (± 5 %)
Rated Conditional Short-Circuit Current (Inc)	40 kA
ETIM 9.0 Class	EC002758
Installation Category (AC Supply)	4 kV, CAT III Class 1
Voltage	400 V ~ Ph-Ph ± 10%
Reinforcement Voltage	440 V
Element	Individual protection of each step with fuses with high rupture power (HRP). NH-00 Series.
Transformation Ratio	5/5A … 9000/5A
Consumption (Per Transformer)	1.5 VA per transformer
Working Temperature	-10 … +45 ºC
Protection Class	IP20
Electrical Safety, Contamination Level/Class	Category 2
Depth	804 mm
Height	1959 mm
Weight	642
Width	1254 mm
Electrical Safety, Maximum Height (M)	2000 m
Relative Humidity (Without condensation)	0 ... 95 %
Storage Temperature	-20 … +50 ºC
Noise (dB)	< 63 dBA
Standards	IEC 61439-2

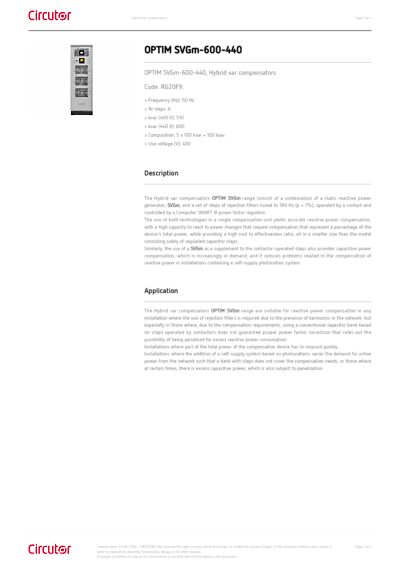

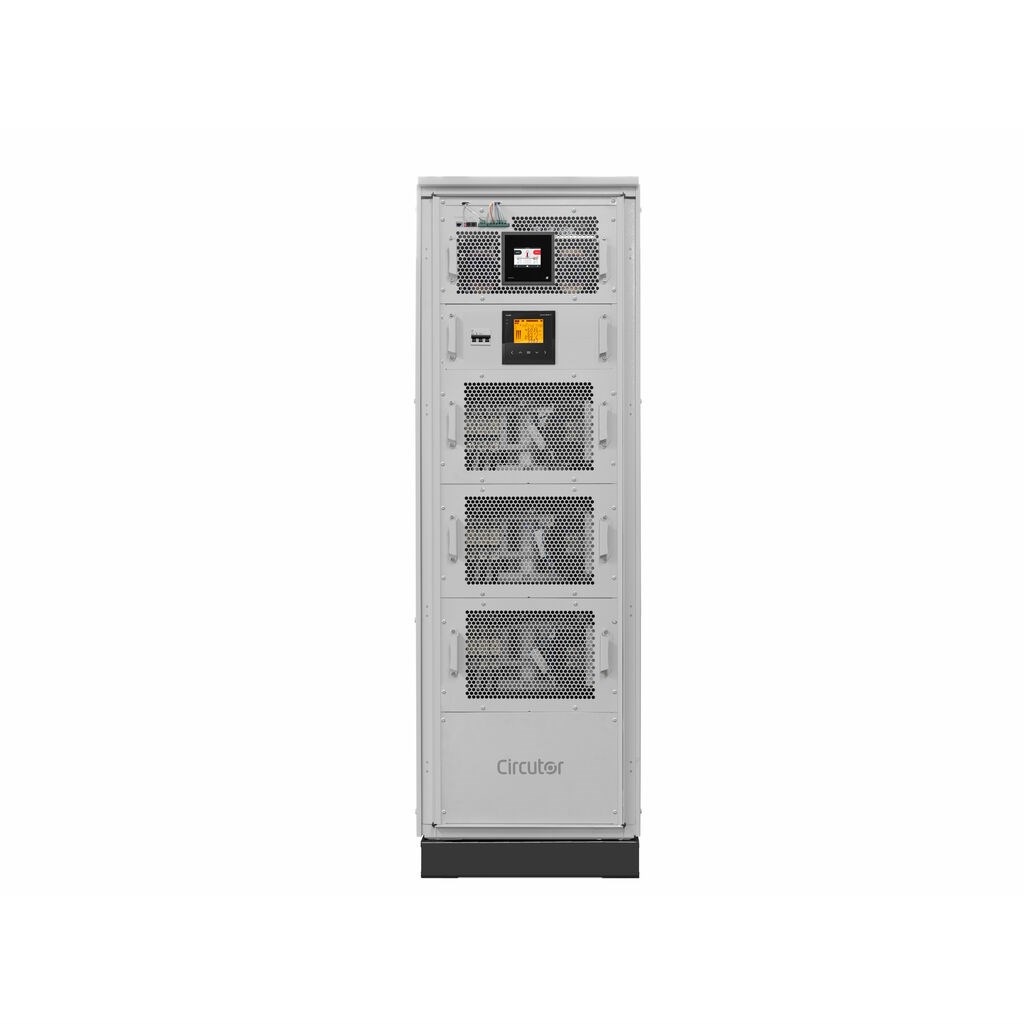

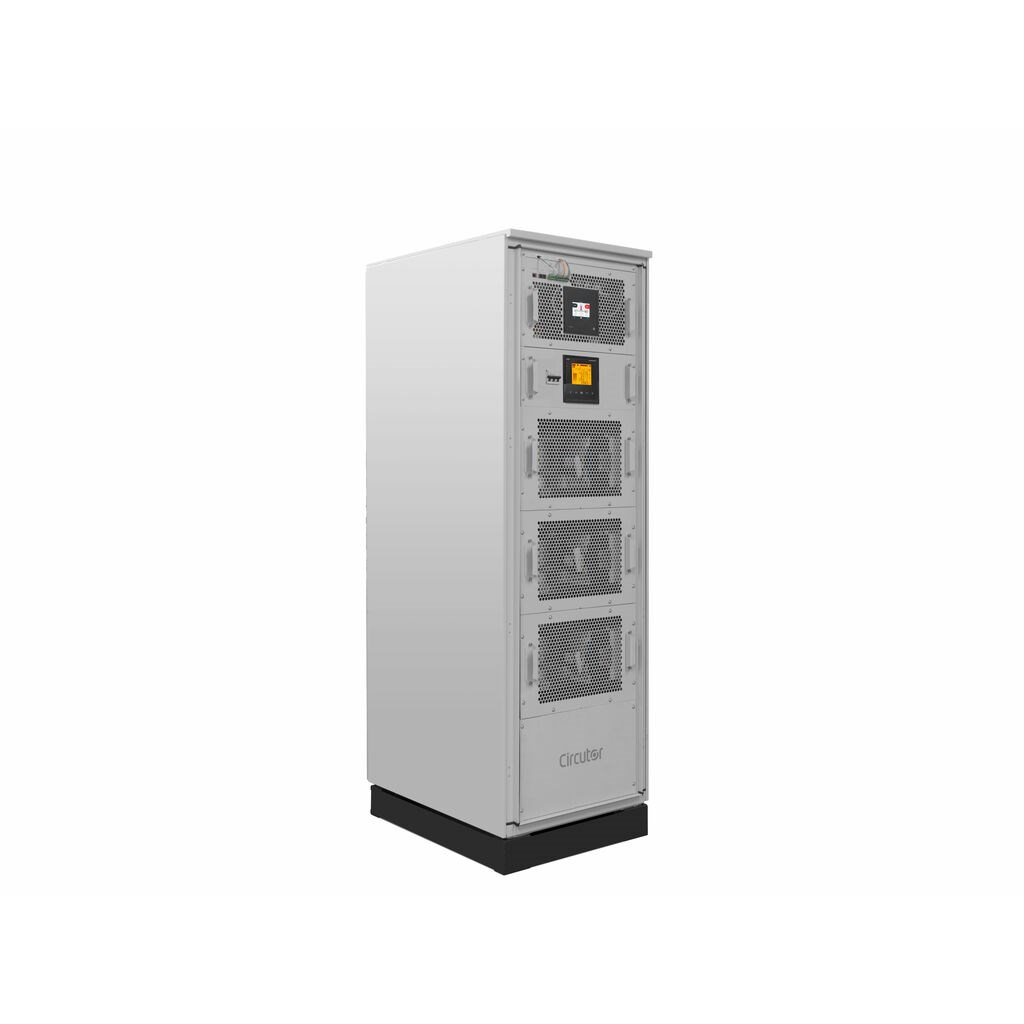

CIRCUTOR RG20F9 OPTIM HVG 600KVAR 440V OPTIM SVGm-600-440
