Specifications

Product Type	Emergency Light
Brand	RP-TECHNIK GMBH
Series	ILE
Insulation Class	2
Rated Frequency	50/60 Hz
Rated Voltage	230 V
Battery	LiFePO4 3.2 V/3.0 Ah
Battery Connection	Connector
Luminous Flux Emergency	250 lm
Bridging Time	3 h
Dimming Function	Yes
Emergency Light Blocking	No
Illuminant	LED
Luminous Flux Mains	130 lm
Monitoring	Wireless Basic (WB)
Connection Cross Section	2.5 mm²
Operating Mode	Non-maintained / maintained
Operating Temperature (Maintained Mode)	-5 °C to 30 °C
Operating Temperature (Non-Maintained Mode)	-5 °C to 40 °C
Power Maintained	2.3 W
Power Non-Maintained	0.4 W
Switching Input	Yes
Power Max.	3.4 W
Supply	Self-contained
Housing Colour	White
Housing Material	Polycarbonate
IK Rating	&ge; 3
Mounting	Recessed mounting
Height	84 mm
Weight	0.23 Kg
Diameter	122 mm
Weight (Including Packaging)	0.29 Kg
IP Rating	IP20
Installation Height	80 mm
Installation Dimensions Diameter	105 mm
Certification	WEEE, RCM, RoHS, 5 years warranty, CISPR15, AS/NZS2293.3, AS/NZS3820, D50

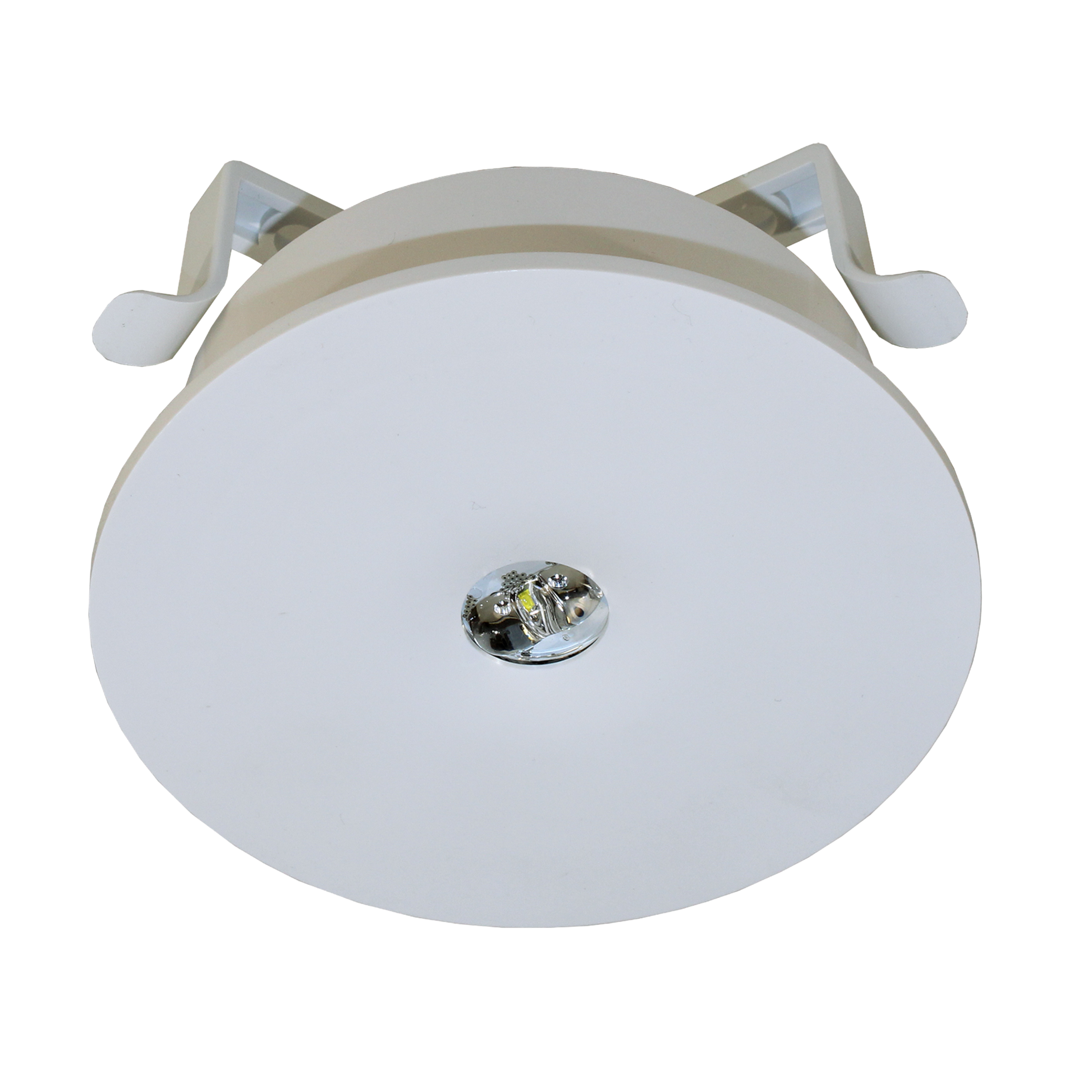

RP Group ILEL423WB-ANZ Emergency Light Self-Contained with Recessed Mounting 3-hour Battery Power IP20 White Polycarbonate Housing
