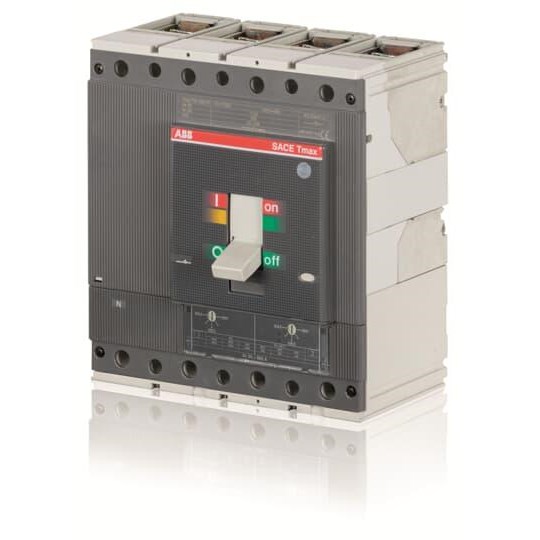

<p>The T5 Frame is a robust and reliable solution designed to meet the demanding requirements of industrial and commercial electrical systems. With a rated current of 500 A, it is well-suited for applications that require consistent performance under high load conditions. The device&#39;s rated impulse withstand voltage of 8 kV ensures resilience against transient overvoltages, making it ideal for environments where electrical stability is crucial.</p><p>This product boasts a rated insulation voltage of 1150 V, providing enhanced safety and reliability in operation. It supports both AC and DC systems with a rated voltage capacity of 1150/1000 VAC/VDC, offering versatility across various applications. The release type TM coupled with the TMA trip unit ensures precise protection by enabling timely disconnection during fault conditions.</p><p>One notable feature is its power loss rating at just 28.8 W, which indicates efficient energy use without compromising on performance. Designed as a four-pole device, the T5 Frame offers comprehensive coverage and flexibility in multi-phase installations.</p><p>Its breaking capacity stands at an impressive 12 kA, ensuring effective interruption capability during short-circuit events to protect downstream equipment from damage. The front connection type facilitates straightforward installation and maintenance processes, reducing downtime significantly.</p><p>With a width of only 184 mm, this compact frame can be integrated into various setups without requiring excessive space—an important consideration in modern electrical design where efficiency often goes hand-in-hand with spatial constraints.</p><p>Compliant with IEC 309 standards and approvals, you can trust that this product meets rigorous international safety and performance criteria. Weighing in at just 5.8 kg makes handling easier during installation or replacement tasks while still maintaining structural integrity throughout its lifecycle.</p><p>The T5 Frame is compatible for use with the T5V system components ensuring seamless integration within existing frameworks or new projects alike—offering both adaptability and reliability.</p><p>Additionally tested at a voltage level of up to 3500 V guarantees that it holds up under stringent testing scenarios further attesting to its durability in real-world applications Manufacturer Part Number: -</p>
