Specifications

Rated Short Circuit Breaking Capacity, (Ics) 690V AC	5 kA
Rated Short Circuit Breaking Capacity, (Icu) 690V AC	8 kA
Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz	50 kA

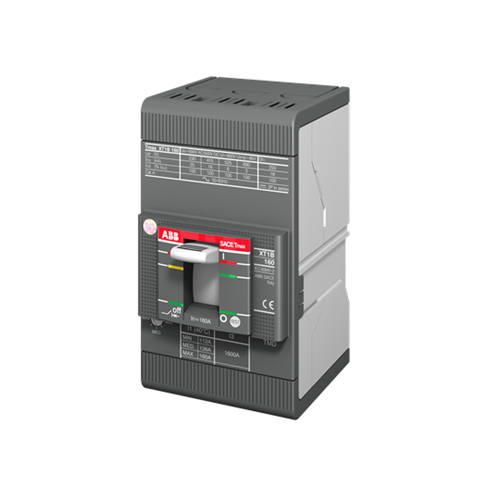

Product Type	Automatic Circuit Breaker
Brand	ABB
Series	SACE Tmax XT
Application	Power Distribution
Connection Type	Front
AC Power Loss Per Pole at In	4.8 W
Long Time Overload Protection Adjustment Range	56 to 80 A
Max. Rated Operation AC Voltage (Ue)	690 V AC
Position of Connection for Main Current Circuit	Front
Rated Current (In)	80 A
Rated Insulation Voltage (Ui)	800 V
Type of Protection Trip Unit	TM
Breaking Capacity	50 kA
Current Setting Range	56-80 A
Rated Frequency	50/60 Hz
Trip Curve	TMD
Terminal Type	Bolt
Electrical Life	8000 cycles
Mechanical Life	25000 cycles
No. of Poles	3
Depth	70 mm
Height	130 mm
Weight	1100 g
Width	76.2 mm
IP Rating	IP20
Standards and Approvals	IEC 60947-2
