Specifications

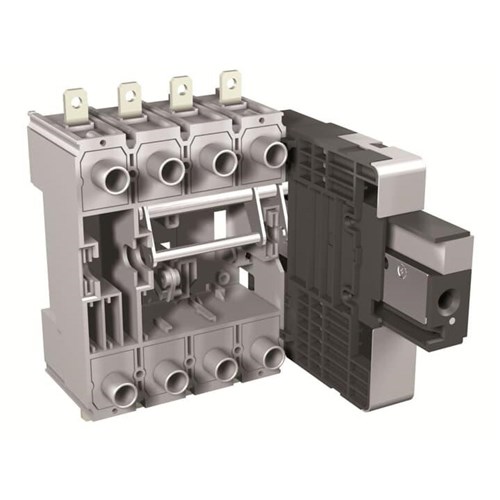

Product Type	Fixed Part
Brand	ABB
Series	Accessories for Tmax XT
Max. Rated Operation AC Voltage (Ue)	690 V AC
Rated Current (In)	160 A
Rated Impulse Withstand Voltage (Uimp)	8 kV
Rated Insulation Voltage (Ui)	1000 V
Suitable For	XT2
Rated Current	160 A
Rated Frequency	50/60 Hz
Rated Voltage	690/500 VAC/VDC
Terminal Type	Withdrawable Circuit-Breakers, Rear flat Horizontal
No. of Poles	3
Weight	1440 g
Standards and Approvals	IEC 60947-2
