Specifications

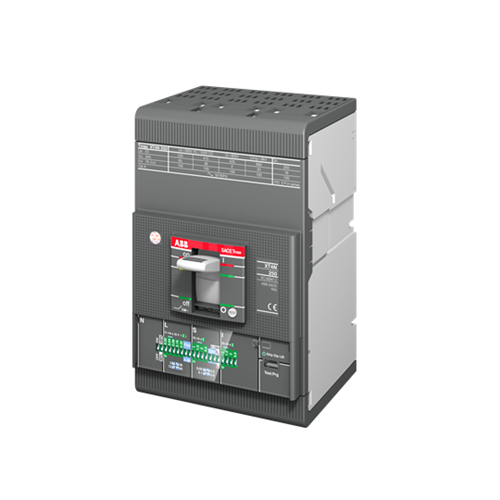

Product Type	Moulded Case Circuit Breaker
Brand	ABB
Connection Type	Front
Rated Impulse Withstand Voltage (Uimp)	8 kV
Rated Insulation Voltage (Ui)	1000 V
Suitable for	XT4S
Breaking Capacity	50 kA
Power Loss	8.9 W
Rated Current	160 A
Rated Frequency	50/60 Hz
Rated Voltage	690 VAC/VDC
Type	Fixed
Terminal Type	Bolt
Connecting Capacity	85-200 sq-mm
Weight	2.5 kg
Width	105 mm
IP Rating	IP20
Standards and Approvals	IEC60947-2
