Specifications

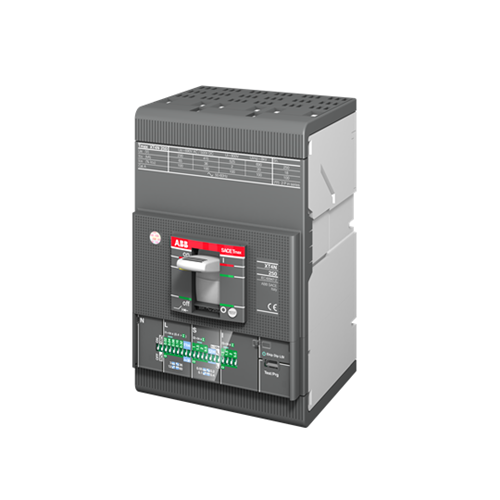

Product Type	Moulded Case Circuit Breaker
Brand	ABB
Breaking Capacity	70 kA
Connection Type	Front
Degree of Protection	IP20
Main Circuit Connecting Capacity	85-200 sq-mm
Number of Poles	3
Power Loss	16.4 W
Rated Current	250 A
Rated Frequency	50/60 Hz
Rated Impulse Withstand Voltage	8 kV
Rated Insulation Voltage	1000 V
Rated Voltage	690 VAC
Release Type	EL
Standards and Approvals	IEC60947-2
Suitable For Use With	XT4H
Terminal Type	Bolt
Trip Unit	Ekip Dip LSI
Version	Fixed
Weight	2.5 kg
Width	105 mm
