Specifications

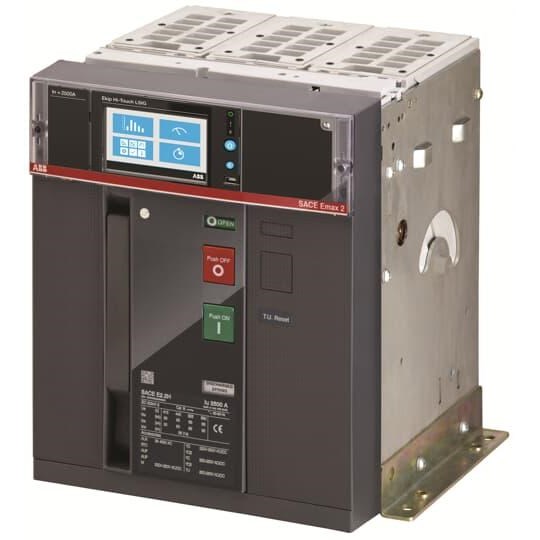

Product Type	Air Circuit Breaker
Brand	ABB
Breaking Capacity	85 kA
Component Type	Fixed
Degree of Protection	IP30
Depth	270 mm
Height	371 mm
Number of Poles	3
Power Loss	136 W
Rated Current	1600 A
Rated Impulse Withstand Voltage	12 kV
Rated Insulation Voltage	1000 V
Rated Voltage	690 VAC
Release Type	EL
Standards and Approvals	IEC 309
Terminal Type	Bolt
Tightening Torque	70 N-m
Trip Unit	Ekip Touch LSIG
Version	Fixed
Weight	41 kg
Width	276 mm
