Specifications

Rated Service Short-Circuit Breaking Capacity Ics at 400 V, 50 Hz	100kA
Rated Short Circuit Breaking Capacity, (Ics) 690V AC	100kA
Rated Short Circuit Breaking Capacity, (Icu) 690V AC	100kA
Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz	100kA

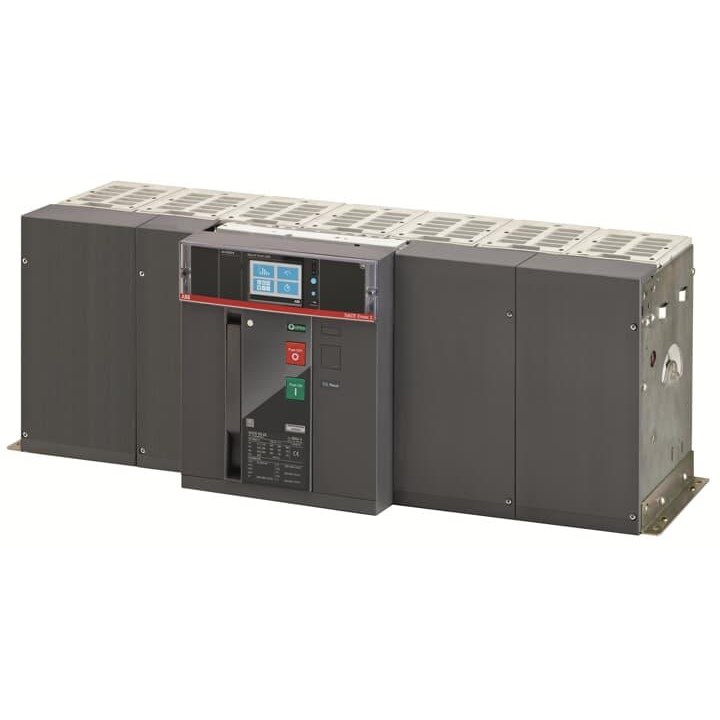

Product Type	Air Circuit Breaker
Brand	ABB
Series	SACE Emax 2
Application	Power Distribution/ Power Control
Air Circuit Breaker (Withdrawable)	Fixed
Electrical Endurance	3000
Max. Rated Operation AC Voltage (Ue)	690VAC
No. of Poles (Total)	4
Rated Current (In)	5000A
Rated Impulse Withstand Voltage (Uimp)	12kV
Rated Insulation Voltage (Ui)	1000V
Short-time Withstand Current (Icw), 1 sec	100kA
Short-time Withstand Current (Icw), 3 sec	100kA
Type of Protection Trip Unit	Ekip Touch LSIG
Frame Size Rating	E6.2H
Power Loss	483W
Rated Frequency	50Hz60Hz
Trip Curve	LSIG
Max. Vibration Accelaration	0.7g
Mechanical Endurance	12000
Depth	270 mm
Height	371 mm
Weight	125 kg
Width	888 mm
Rated Surrounding Temperature without Derating	60°C
Standards and Approvals	IEC 609472 and EN 60947
