Specifications

Rated Service Short-Circuit Breaking Capacity Ics at 400 V, 50 Hz	66kA
Rated Short Circuit Breaking Capacity, (Ics) 690V AC	50kA
Rated Short Circuit Breaking Capacity, (Icu) 690V AC	50kA
Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz	50kA

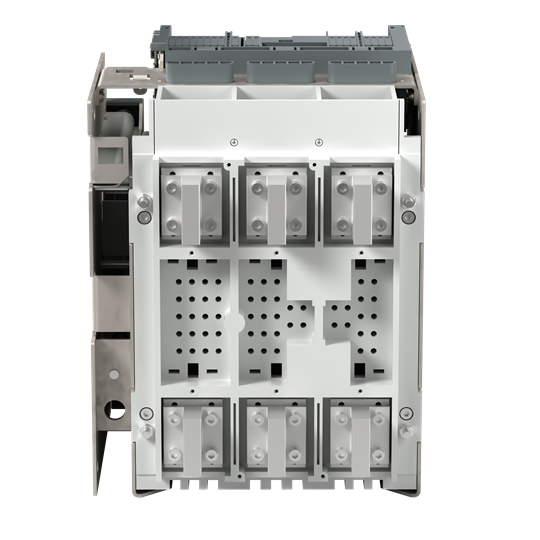

Product Type	Air Circuit Breaker
Brand	ABB
Series	SACE Emax 2
Application	Power Distribution/ Power Control
Air Circuit Breaker (Withdrawable)	Withdrawable
Electrical Endurance	8000
Max. Rated Operation AC Voltage (Ue)	690VAC
No. of Poles (Total)	3
Rated Current (In)	800A
Rated Impulse Withstand Voltage (Uimp)	12kV
Rated Insulation Voltage (Ui)	1000V
Short-time Withstand Current (Icw), 1 sec	50kA
Short-time Withstand Current (Icw), 3 sec	30kA
Type of Protection Trip Unit	Ekip HiTouch LSIG
Frame Size Rating	E1.2N
Power Loss	100W
Rated Frequency	50Hz60Hz
Trip Curve	LSIG
Max. Vibration Accelaration	0.7g
Mechanical Endurance	20000
Depth	271 mm
Height	363.5 mm
Weight	18kg
Width	278 mm
Rated Surrounding Temperature without Derating	70°C
Standards and Approvals	IEC 609472 and EN 60947
