Specifications

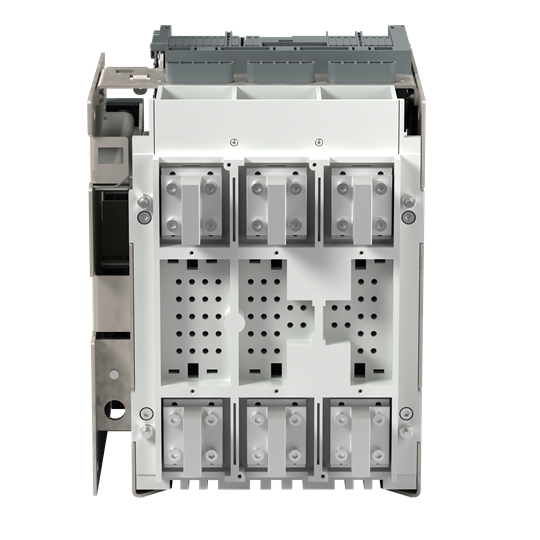

Product Type	Air Circuit Breaker
Brand	ABB
Breaking Capacity	50 kA
Component Type	Withdrawable
Degree of Protection	IP30
Depth	271 mm
Height	363.5 mm
Number of Poles	3
Power Loss	400 W
Rated Current	1600 A
Rated Impulse Withstand Voltage	12 kV
Rated Insulation Voltage	1000 V
Rated Voltage	690 VAC
Release Type	EL
Standards and Approvals	IEC 309
Trip Unit	Ekip Hi-Touch LSIG
Version	Withdrawable
Weight	18 kg
Width	278 mm
