Specifications

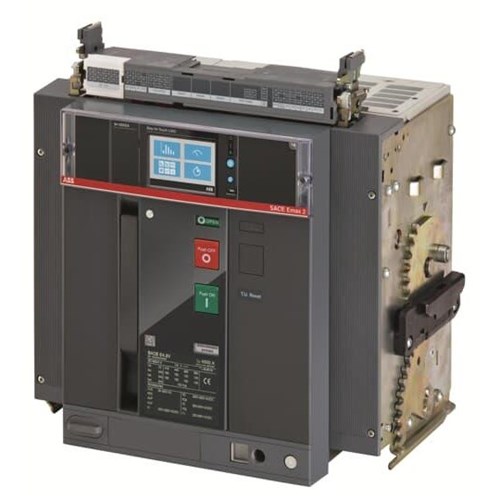

Product Type	Air Circuit Breaker Moving Part
Brand	ABB
Breaking Capacity	66 kA
Component Type	Withdrawable
Current Type	AC
Degree of Protection	IP30
Depth	383 mm
Height	425 mm
Number of Poles	3
Power Loss	900 W
Rated Current	4000 A
Rated Impulse Withstand Voltage	12 kV
Rated Insulation Voltage	1000 V
Rated Voltage	690 VAC
Release Type	EL
Standards and Approvals	IEC 309
Suitable For Use With	E4.2N
Trip Unit	EKIP Touch LSIG
Version	Withdrawable
Weight	60 kg
Width	425 mm
