Specifications

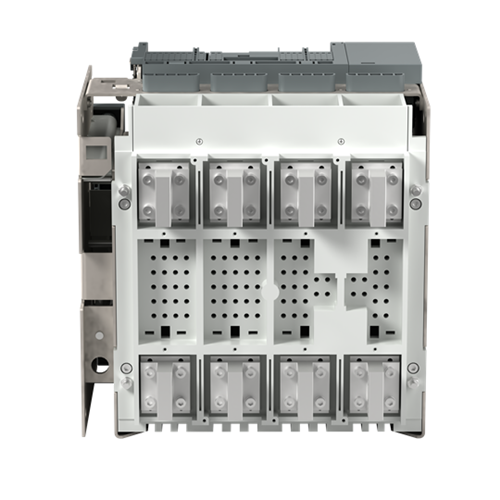

Product Type	Air Circuit Breaker Moving Part
Brand	ABB
Breaking Capacity	50 kA
Component Type	Withdrawable
Current Type	AC
Degree of Protection	IP30
Depth	271 mm
Height	363.5 mm
Number of Poles	4
Power Loss	400 W
Rated Current	1600 A
Rated Impulse Withstand Voltage	12 kV
Rated Insulation Voltage	1000 V
Rated Voltage	690 VAC
Release Type	EL
Standards and Approvals	IEC 309
Trip Unit	EKIP Touch LSIG
Version	Withdrawable
Weight	20 kg
Width	348 mm
