Specifications

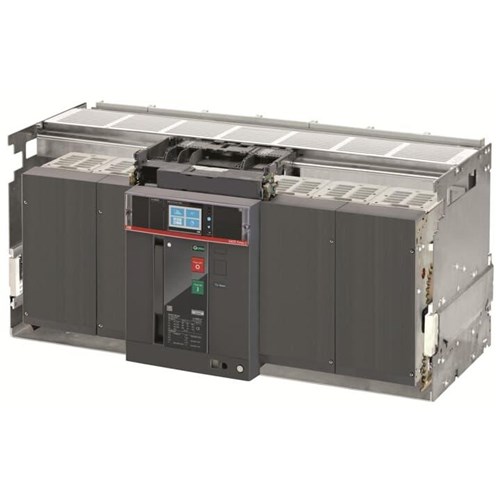

Product Type	Air Circuit Breaker
Brand	ABB
Breaking Capacity	100 kA
Component Type	Withdrawable
Degree of Protection	IP30
Depth	383 mm
Height	425 mm
Number of Poles	4
Power Loss	850 W
Rated Current	5000 A
Rated Impulse Withstand Voltage	12 kV
Rated Insulation Voltage	1000 V
Rated Voltage	690 VAC
Release Type	EL
Standards and Approvals	IEC 309
Trip Unit	Ekip Touch LSIG
Version	Withdrawable
Weight	148 kg
Width	1069 mm
