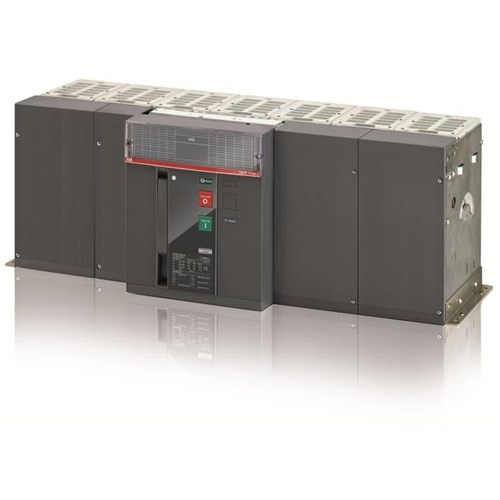

Specifications

Product Type	Fixed
Brand	ABB
Series	SACE Emax 2
Application	Isolating Circuits
AC Power Loss Per Pole at In	256 W
Air Circuit Breaker (Withdrawable)	Fixed
Electrical Endurance	2000
Max. Rated Operation AC Voltage (Ue)	690VAC
No. of Poles (Total)	4
Rated Current (In)	6300 A
Rated Impulse Withstand Voltage (Uimp)	12kV
Rated Insulation Voltage (Ui)	1000VAC
Short-time Withstand Current (Icw), 1 sec	100 kA
Short-time Withstand Current (Icw), 3 sec	100 kA
Frame Size Rating	E6.2H/MS
Power Loss	767 W
Rated Frequency	50Hz60Hz
Housing Material	polyester thermoset
Max. Vibration Acceleration	0.7g
Mechanical Endurance	12000
Depth	270 mm
Height	371 mm
Weight	125kg
Width	888 mm
Rated Surrounding Temperature Without Derating	45°C
Pollution Degree	Level 3
Operating Temperature	25°C to 70°C
IP Rating	IP20
Max. Altitude Before Derating	2000m
Standards and Approvals	IEC 609473 and EN 60947
