Specifications

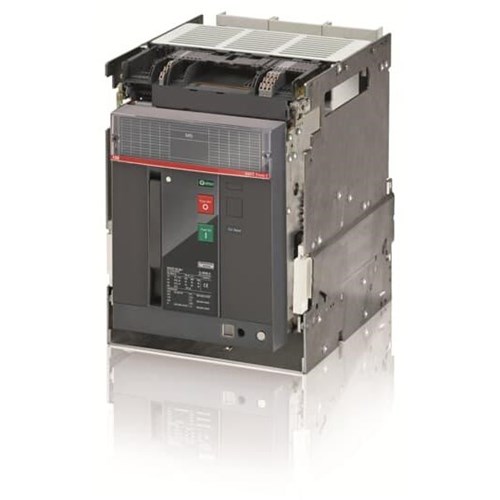

Product Type	Switch Disconnector
Brand	ABB
Series	SACE Emax 2
Application	Isolating Circuits
AC Power Loss Per Pole at In	59 W
Air Circuit Breaker (Withdrawable)	Fixed
Electrical Endurance	15000
Max. Rated Operation AC Voltage (Ue)	690VAC
No. of Poles (Total)	3
Rated Current (In)	1250 A
Rated Impulse Withstand Voltage (Uimp)	12kV
Rated Insulation Voltage (Ui)	1000VAC
Short-time Withstand Current (Icw), 1 sec	66 kA
Short-time Withstand Current (Icw), 3 sec	50 kA
Frame Size Rating	E2.2N/MS
Power Loss	176 W
Rated Frequency	50Hz60Hz
Housing Material	polyester thermoset
Max. Vibration Accelaration	0.7g
Mechanical Endurance	25000
Depth	383 mm
Height	425 mm
Weight	48kg
Width	317 mm
Rated Surrounding Temperature without Derating	70°C
Pollution Degree	Level 3
Operating Temperature	25°C to 70°C
IP Rating	IP20
Max. Altitude Before Derating	2000m
Standards and Approvals	IEC 609473 and EN 60947
