Specifications

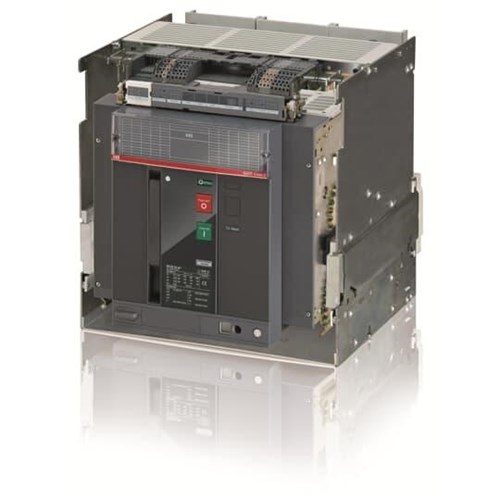

Product Type	Switch Disconnector
Brand	ABB
Series	SACE Emax 2
Application	Isolating Circuits
AC Power Loss Per Pole at In	300 W
Air Circuit Breaker (Withdrawable)	Withdrawable
Electrical Endurance	5000
Max. Rated Operation AC Voltage (Ue)	690VAC
No. of Poles (Total)	3
Rated Current (In)	4000 A
Rated Impulse Withstand Voltage (Uimp)	12kV
Rated Insulation Voltage (Ui)	1000VAC
Short-time Withstand Current (Icw), 1 sec	85 kA
Short-time Withstand Current (Icw), 3 sec	75 kA
Frame Size Rating	E4.2H/MS
Power Loss	900 W
Rated Frequency	50Hz60Hz
Housing Material	polyester thermoset
Max. Vibration Acceleration	0.7g
Mechanical Endurance	15000
Depth	383 mm
Height	425 mm
Weight	60kg
Width	425 mm
Rated Surrounding Temperature Without Derating	45°C
Pollution Degree	Level 3
Operating Temperature	25°C to 70°C
IP Rating	IP20
Max. Altitude Before Derating	2000m
Standards and Approvals	IEC 609473 and EN 60947
