Specifications

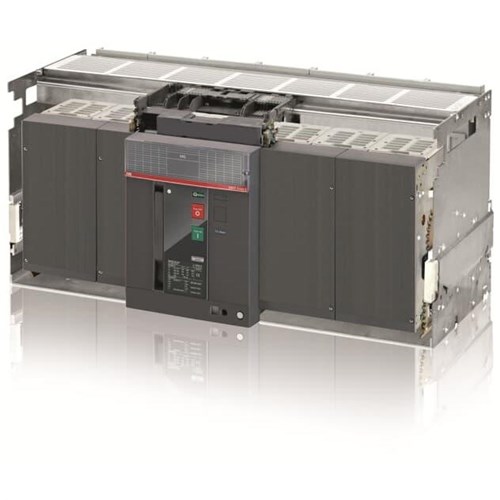

Product Type	Switch Disconnector
Brand	ABB
Series	SACE Emax 2
Application	Isolating Circuits
AC Power Loss Per Pole at In	283 W
Air Circuit Breaker (Withdrawable)	Withdrawable
Electrical Endurance	3000
Max. Rated Operation AC Voltage (Ue)	690VAC
No. of Poles (Total)	4
Rated Current (In)	5000 A
Rated Impulse Withstand Voltage (Uimp)	12kV
Rated Insulation Voltage (Ui)	1000VAC
Short-time Withstand Current (Icw), 1 sec	100 kA
Short-time Withstand Current (Icw), 3 sec	100 kA
Frame Size Rating	E6.2H/MS
Power Loss	850 W
Rated Frequency	50Hz60Hz
Housing Material	polyester thermoset
Max. Vibration Accelaration	0.7g
Mechanical Endurance	12000
Depth	383 mm
Height	425 mm
Weight	134kg
Width	929 mm
Rated Surrounding Temperature without Derating	60°C
Pollution Degree	Level 3
Operating Temperature	25°C to 70°C
IP Rating	IP20
Max. Altitude Before Derating	2000m
Standards and Approvals	IEC 609473 and EN 60947
