Specifications

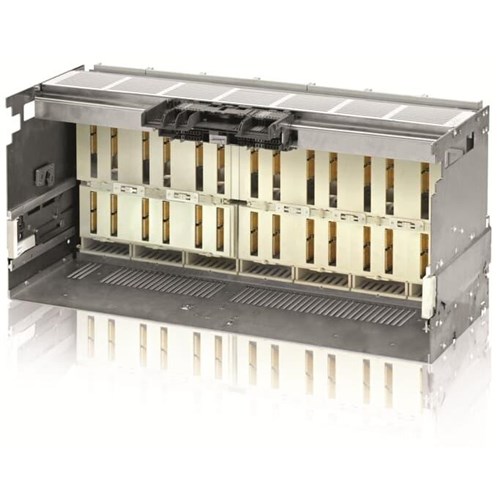

Product Type	Fixed Part
Brand	ABB
Series	SACE EMAX2
Application	Industrial
Air Circuit Breaker (Withdrawable)	withdrawable
Max. Rated Operation AC Voltage (Ue)	900 V AC
No. of Poles (Total)	4P
Rated Current (In)	5000 A
Rated Impulse Withstand Voltage (Uimp)	acc. to IEC 609472 12 kV
Rated Insulation Voltage (Ui)	AC 1000V
Frame Size Rating	E6.2
Depth	383 mm
Height	425 mm
Weight	109 kg
Width	929 mm
Standards and Approvals	IEC 60947
