Specifications

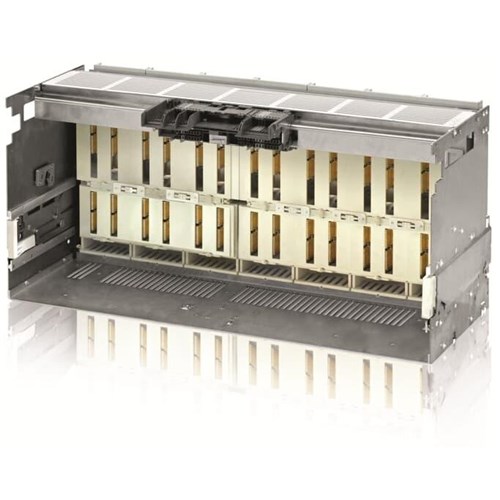

Product Type	Fixed Part
Brand	ABB
Series	SACE EMAX2
Application	Industrial
Air Circuit Breaker (Withdrawable)	withdrawable
Max. Rated Operation AC Voltage (Ue)	690 V AC
No. of Poles (Total)	4P
Rated Current (In)	6300 A
Rated Impulse Withstand Voltage (Uimp)	acc. to IEC 609472 12 kV
Rated Insulation Voltage (Ui)	AC 1000 V
Frame Size Rating	E6.2
Depth	383 mm
Height	425 mm
Weight	112 kg
Width	1069 mm
Standards and Approvals	IEC 60947
