Specifications

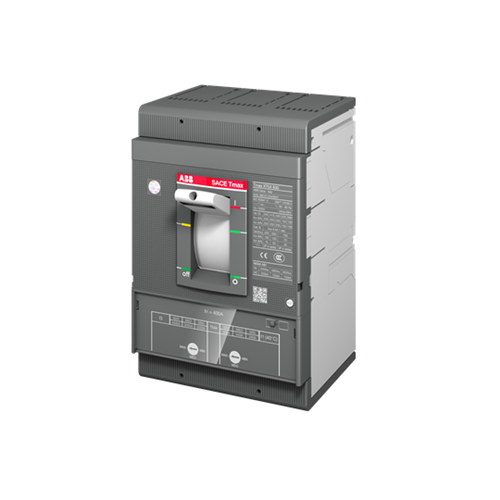

Product Type	Moulded Case Circuit Breaker
Brand	ABB
Breaking Capacity	50 kA
Connection Type	Front
Current Setting Range	441-630 A
Degree of Protection	IP20
Number of Poles	3
Power Loss	47.8 W
Rated Current	630 A
Rated Impulse Withstand Voltage	8 kV
Rated Insulation Voltage	1000 V
Rated Short Circuit Current	3150-6300 A
Rated Voltage	690/750 VAC/VDC
Release Type	TM
Standards and Approvals	IEC60947-2
Suitable For Use With	XT5S
Trip Unit	TMA
Version	Fixed
Weight	4.775 kg
Width	140 mm
