Specifications

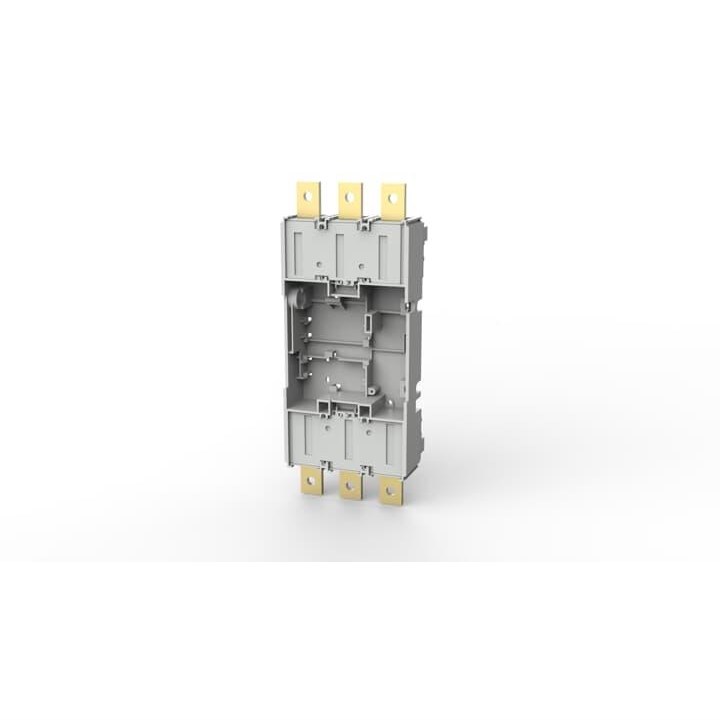

Product Type	Fixed Part
Brand	ABB
Series	Accessories for Tmax XT
Max. Rated Operation AC Voltage (Ue)	600 V AC
Rated Current (In)	600 A
Rated Insulation Voltage (Ui)	1000 V
Suitable For	XT5 (SACE Tmax XT)
Rated Current	630 A
Rated Frequency	50/60 Hz
Rated Voltage	600 VAC/VDC
Terminal Type	Plug-In Circuit-Breakers, Front Extended
No. of Poles	3
Weight	21700 g
Standards and Approvals	IEC 60947-2, UL 489
