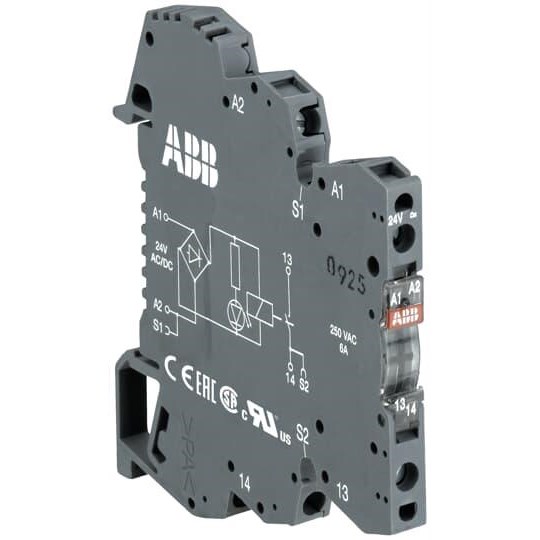

ABB 1SNA645003R0500 Interface Relay 6mm W Screw Terminal 115VAC/DC R600

Product Code: 1SNA645003R0500

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Interface Relay
Brand ABB
Contact Configuration 1CO SPDT
Rated Voltage 115 VAC/VDC
Terminal Type Screw
Model Boxed Interface Relay R600
Height 67.5 mm
Length 70 mm
Weight 0.02 kg
Width 6 mm
IP Rating IP20
Standards and Approvals CAN/CSA C22.2 No.14,IEC/EN 63000,IEC/EN 60947-5-1,UL 508
