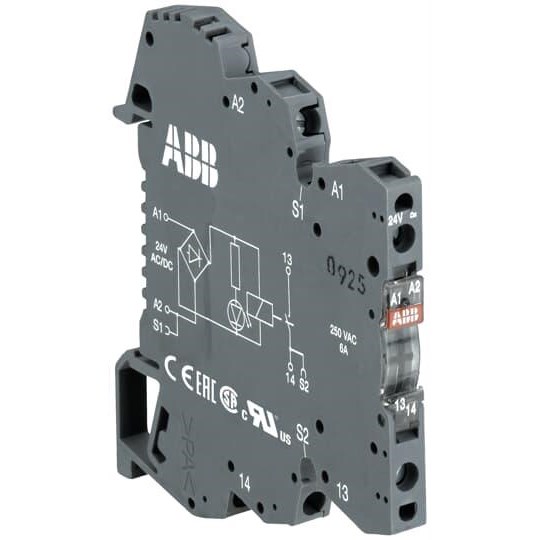

ABB 1SNA645022R2700 Screw Optocoupler 6mm W Screw Terminal 115-230VAC/DC R600

Product Code: 1SNA645022R2700

1

Specifications

Product Type	Optocoupler
Brand	ABB
Series	R600
Actuating Voltage	115 ... 230 V AC/DC
Contact Configuration	Solid State
Electrical Connection	Screw terminals
Rated Current	1 mA ... 100 mA
Rated Voltage	4.5 ... 58VDC
Terminal Type	Screw
Housing Material	UL 94 V0
Model	Boxed Interface Relay R600
Mounting Type	Din Rail
Depth	70 mm
Height	67.5 mm
Length	70 mm
Weight	0.02 kg
Width	6 mm
IP Rating	IP20
Ambient Temperature	-40...+80 °C
Standards and Approvals	CAN/CSA C22.2 No.14\| IEC/EN 63000\| IEC/EN 60947-5-1\| UL 508

Documents

IPD Product Catalogue V17

ABB Brochure

ABB Catalogue

ABB Datasheet

Instructions

Certificate

cUL_Certification

EU Declaration of Conformity
