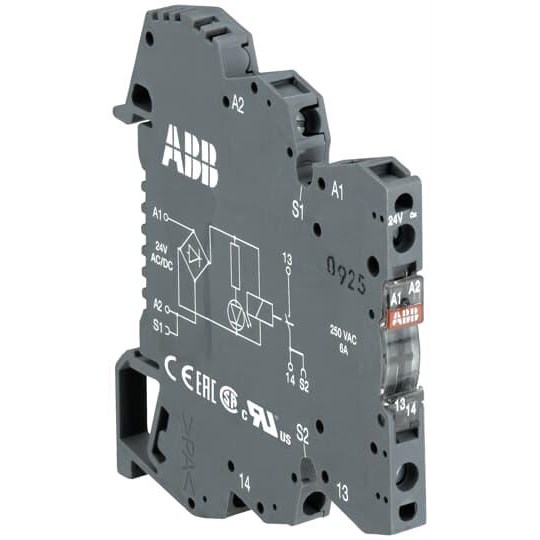

ABB 1SNA645503R0700 Interface Relay 6mm W Spring Terminal 115VAC/DC R600

Product Code: 1SNA645503R0700

1

Specifications

Product Type	Interface relay
Brand	ABB
Series	R600
Actuating Voltage	115 V AC/DC
No. of Change-Over Contacts	1
Contact Configuration	1CO SPDT
Electrical Connection	Spring terminals
Rated Current	10mA ... 6A
Rated Voltage	5 ... 250VAC
Terminal Type	Spring
Housing Material	UL 94 V0
Model	Boxed Interface Relay R600
Mounting Type	Din Rail
Depth	75 mm
Height	67.5 mm
Length	75 mm
Weight	0.02 kg
Width	6 mm
IP Rating	IP20
Ambient Temperature	-40...+80 °C
Standards and Approvals	CAN/CSA C22.2 No.14 IEC/EN 63000 IEC/EN 60947-5-1 UL 508

Documents

IPD Product Catalogue V17

ABB Brochure

ABB Catalogue

ABB Datasheet

Instructions

Certificate

CSA Certification

cUL_Certification

EU Declaration of Conformity
