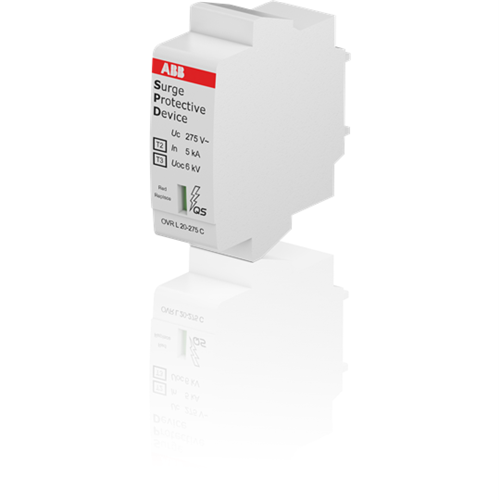

ABB 2CTB803876R1200 Surge Protective Device 2kA 1-P 20kA 230VAC Plug-In IP20

Product Code: 2CTB803876R1200

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Surge Protective Device
Brand ABB
Connection Type Plug-In
Degree of Protection IP20
Depth 55.6 mm
Height 57 mm
Lightning Impulse Current 2 kA
Mounting Type DIN Rail
Number of Conductors 1
Number of Poles 1
Rated Current 20 kA
Rated Short Circuit Current 100 kA
Rated Voltage 230 VAC
Suitable For Use With Protect The Systems Against The Transient Overvoltage (Lightning)
Version Plug-in
Voltage Protection Level 0.9 kV
Weight 0.12 kg
Width 17.6 mm

Documents

IPD Product Catalogue V17

Certificate

Environmental Product Declaration
EU Declaration of Conformity
REACH Certification
