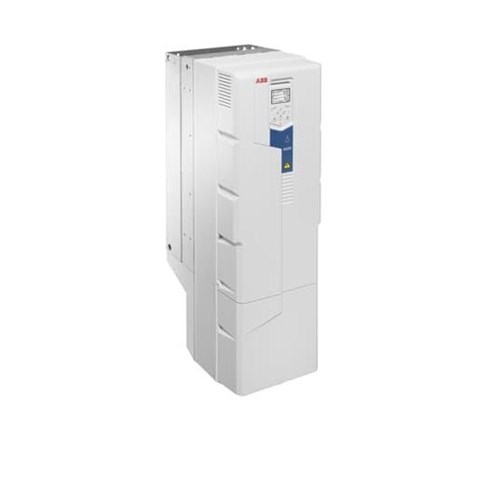

VSD WATER ACQ580 160KW 293A IP21 WITH BLUETOOTH PANEL ABB ACQ580-01-293A-4+J429

Product Code: 3AXD50000034607

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Water & Wastewater Drives
Brand ABB
No. Of Input Phases 3-phase
Nominal Input Voltage 380 ... 480 V
Normal Duty Amps 293 A
Normal Duty kW 160 kW
Heavy Duty Amps 246 A
Heavy Duty kW 132 kW
Control Panel (Keypad) Yes
Frame Size R8
Depth 393 mm
Height 965 mm
Weight 69 kg
Width 300 mm
Operating Temperature Maximum 40 °C Minimum -15 °C
IP Rating IP21
Standards and Approvals UNSPSC: 39122001

Documents

IPD Product Catalogue V17
ABB Brochure
ABB Catalogue
ABB Datasheet
Instructions
Manual

Certificate

CSA Certification
Environmental Product Declaration
EU Declaration of Conformity
