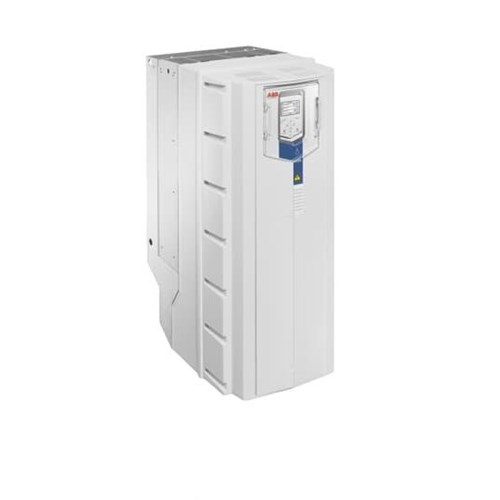

VSD WATER ACQ580 200KW 363A IP55 WITH BLUETOOTH PANEL ACQ580-01-363A-4+B056+J429

Product Code: 3AXD50000034631

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Water & Wastewater Drives
Brand ABB
No. Of Input Phases 3-phase
Nominal Input Voltage 380 ... 480 V
Normal Duty Amps 363 A
Normal Duty kW 200 kW
Heavy Duty Amps 293 A
Heavy Duty kW 160 kW
Control Panel (Keypad) Yes
Frame Size R9
Depth 477 mm
Height 955 mm
Weight 103 kg
Width 380 mm
Operating Temperature Maximum 40 °C Minimum -15 °C
IP Rating IP55
Standards and Approvals UNSPSC: 39122001

Documents

IPD Product Catalogue V17
ABB Brochure
ABB Catalogue
ABB Datasheet
Instructions
Manual

Certificate

CSA Certification
Environmental Product Declaration
EU Declaration of Conformity
