Specifications

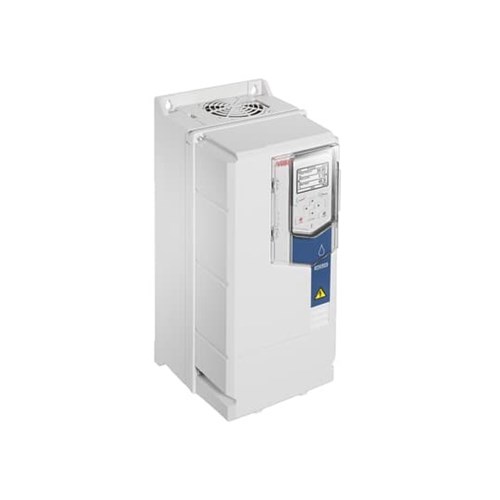

Product Type	Water & Wastewater Drives
Brand	ABB
kVA Rating	22 kVA
No. of Analog Inputs	2
No. of Analog Outputs	2
No. of Digital Inputs	6
No. of Digital Outputs	3
No. of Phases	3
Communication Ports	0 Industrial Ethernet, 2 Other, 2 Parallel, 0 PROFINET, 0 RS-232, 0 RS-422, 1 RS-485, TTY 0 Serial, 1 USB
Efficiency	IE2
Rated Current	32 A
Rated Frequency	47.5/63 Hz
Rated Power	15 kW
Rated Voltage	380-480 V
No. of Input Phases	3-phase
Nominal Input Voltage	380 ... 480 V
Normal Duty Amps	32.0 A
Normal Duty kW	15 kW
Heavy Duty Amps	24.6 A
Heavy Duty kW	11 kW
Control Panel (Keypad)	Yes
Enclosure Type	NEMA 12
Frame Size	R3
Mounting Type	Wall
Depth	237 mm
Height	490 mm
Weight	13 kg
Width	206 mm
Humidity	5-95% Non-Condensing
Operating Temperature	Maximum 40 °C Minimum -15 °C
IP Rating	IP55
Standards and Approvals	UNSPSC: 39122001
