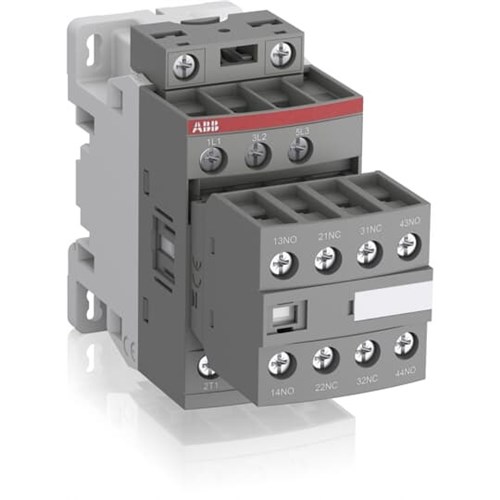

<p>The AF Contactor is a robust and reliable solution for industrial and commercial applications, designed to meet the demanding requirements of electrical systems. With a rated voltage of 690 VAC, it is well-suited for high-voltage environments, ensuring seamless operation across various applications. The contactor supports a rated current of 25 A and 22 A, providing flexibility in different load conditions.</p><p>Operating at a frequency range of 50/60 Hz, this contactor integrates effortlessly into diverse electrical setups. Its rated impulse withstand voltage stands at an impressive 6 kV, offering excellent protection against transient overvoltages. Furthermore, the device boasts a rated insulation voltage of up to 690 VAC and 600 V, emphasizing its safety credentials in maintaining system integrity.</p><p>Designed with resilience in mind, the AF Contactor can withstand short-time currents effectively: 350 A for 10 seconds;150 A for one minute;225 A for thirty seconds;and even up to an impressive700 Afor one second. This capability ensures durability during unexpected surges or short circuits.</p><p>The contact configuration features3 normally open (NO) contacts,making it suitable for straightforward switching tasks.The screw terminal type allows secure connections with specified tightening torques of1.2 N-mfor auxiliary/control circuits,and1.5 N-mfor main circuits.This ensures optimal performance when installed correctly.</p><p>With an IP20 degree of protection,the product is safeguarded against solid objects larger than12 mm.The degreeof pollution ratingatIP3further reinforces its reliability under moderate environmental conditions.Ascrew mounting type simplifies installation processes while maintaining stability once affixed.</p><p>For easeof wiring,a wire stripping lengthof10 mmis recommended.Its compact dimensions—45 mm wide by86 mm high by110.5 mm deep—allow integration into space-constrained setups without compromising functionality.The air thermal current ratings are35 Aand16A,respectively,catering to thermal management needs across varying operational scenarios.</p><p>Compliance with key standards such as IEC/EN60947-1,IEC/EN60947-4-1,and UL60947-4-1 underscores the quality assurance inherent in this cont actor.It also meets CSA C22.2 No.60947-4-1 standards,further validating its suitability for North American markets.</p><p>In summary,this AF Contactor offers comprehensive specifications that align perfectly with rigorous industrial demands.Its combinationof versatility,durability,and compliance makes it an ideal choice fora rangeof applications where efficiencyandsafetyare paramount.</p>
