Specifications

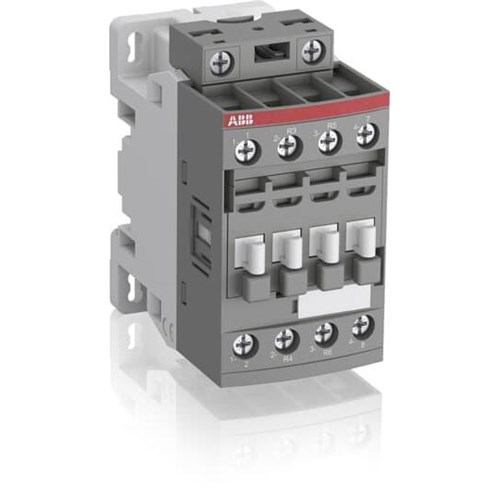

Product Type	AF Contactor
Brand	ABB
Contact Configuration	2NO+2NC
Degree of Protection	IP20
Depth	77 mm
Height	86 mm
Mounting Type	DIN Rail, Panel
Number of Poles	4
Rated Current	30 A
Rated Frequency	50/60 Hz
Rated Impulse Withstand Voltage	6 kV
Rated Insulation Voltage	690 V
Rated Power	9 kW
Rated Voltage	24-60 VAC
Standards and Approvals	IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CAN/CSA C22.2 No.60947-1, CAN/CSA C22.2 No.60947-4-1
Storage Temperature	-60 to 80 deg C
Terminal Type	Screw
Width	45 mm
