Specifications

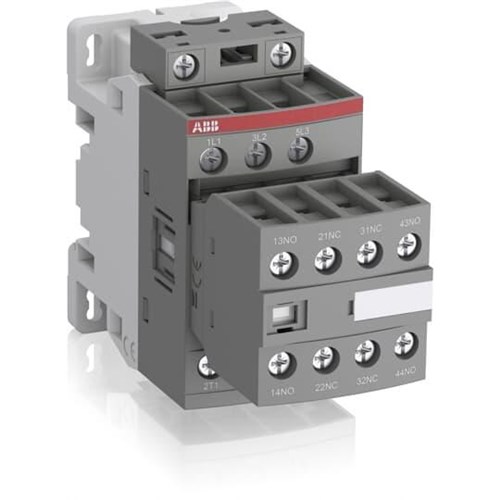

Product Type	3-Pole Contactors
Brand	ABB
No. of Auxiliary Contacts	2NO + 2NC
Rated Control Supply Voltage (Us)	50 Hz 24 ... 60 V60 Hz 24 ... 60 VDC Operation 20 ... 60 V
Rated Operational Current AC-1 <= 690V (Ie)	30 A
Rated Operational Current AC-3 400V (Ie)	18 A
Rated Operational Current AC-3 690V (Ie)	10.5 A
Rated Operational Power AC-3 400V (Pe)	7.5 kW
Rated Operational Power AC-3 690V (Pe)	9 kW
Rated Frequency	50 / 60 Hz
No. of Poles	3P
Depth	110.5 mm
Height	86 mm
Weight	0.36 kg
Width	45 mm
Ambient Temperatures	-40 ... 70 °C
Standards and Approvals	IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-4-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 60947-4-1
