Specifications

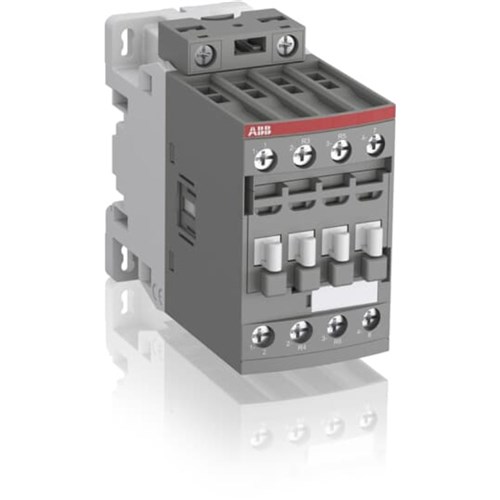

Product Type	Contactor
Brand	ABB
No. of Poles (Total)	4P
Rated Control Supply Voltage (Us)	24-60 V AC / 20-60 V DC
Rated Operational Current AC-1 <= 690V (Ie)	(690 V) 40 °C 45 A
Rated Operational Current AC-3 400V (Ie)	(415 V) 60 °C 21.2 A
Rated Operational Current AC-3 690V (Ie)	(690 V) 60 °C 10.5 A
Rated Operational Power AC-3 400V (Pe)	(400 V) 11 kW
Rated Operational Power AC-3 690V (Pe)	(690 V) 9 kW
Rated Frequency	50/60 Hz
No. of Auxiliary Contacts (NO/NC)	0 NO + 0 NC
Depth	101 mm
Height	86 mm
Weight	0.36 kg
Width	45 mm
Operating Temperature	-40 to 70 °C (Near Contactor for Operation in Free)
Standards and Approvals	IEC/EN 60947-1, IEC/EN 60947-4-1
