Specifications

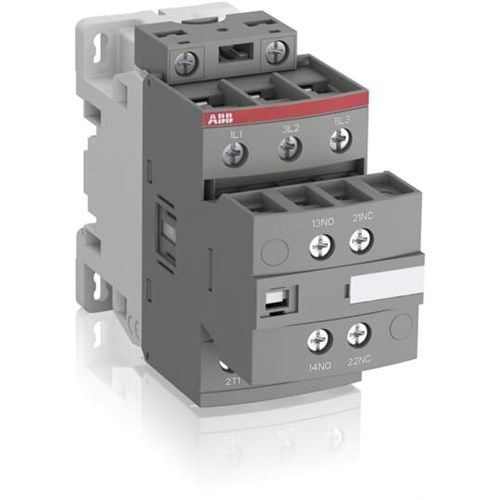

Product Type	3-Pole Contactors
Brand	ABB
No. of Auxiliary Contacts	1NO + 1NC
Rated Control Supply Voltage (Us)	50 Hz 250 ... 500 V60 Hz 250 ... 500 VDC Operation 250 ... 500 V
Rated Operational Current AC-1 <= 690V (Ie)	50 A
Rated Operational Current AC-3 400V (Ie)	32 A
Rated Operational Current AC-3 690V (Ie)	21 A
Rated Operational Power AC-3 400V (Pe)	15 kW
Rated Operational Power AC-3 690V (Pe)	18.5 kW
Rated Frequency	50 / 60 Hz
No. of Poles	3P
Depth	111.5 mm
Height	86 mm
Weight	0.39 kg
Width	45 mm
Ambient Temperatures	-40 ... 70 °C
Standards and Approvals	IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-4-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 60947-4-1
