Specifications

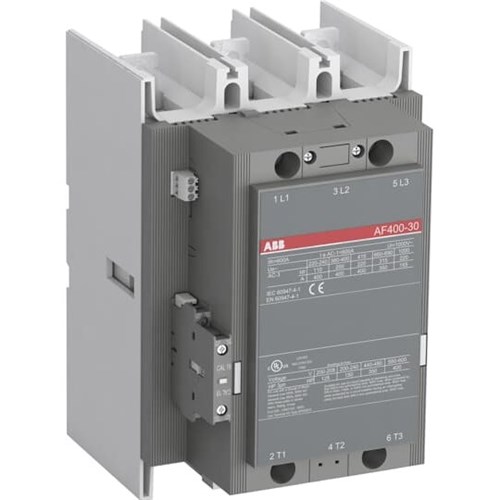

Product Type	3-Pole Contactors
Brand	ABB
No. of Auxiliary Contacts	1NO + 1NC
Rated Control Supply Voltage (Us)	50 Hz 250 ... 500 V60 Hz 250 ... 500 VDC Operation 250 ... 500 V
Rated Operational Current AC-1 <= 690V (Ie)	600 A
Rated Operational Current AC-1 1000V (Ie)	500 A
Rated Operational Current AC-3 1000V (Ie)	155 A
Rated Operational Current AC-3 400V (Ie)	400 A
Rated Operational Current AC-3 690V (Ie)	350 A
Rated Operational Power AC-3 1000V (Pe)	220 kW
Rated Operational Power AC-3 400V (Pe)	200 kW
Rated Operational Power AC-3 690V (Pe)	315 kW
Rated Frequency	50 / 60 Hz
No. of Poles	3P
Depth	216 mm
Height	278 mm
Weight	10.6 kg
Width	186 mm
Ambient Temperatures	-40 ... 70 °C
Standards and Approvals	IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 60947-4-1
