Specifications

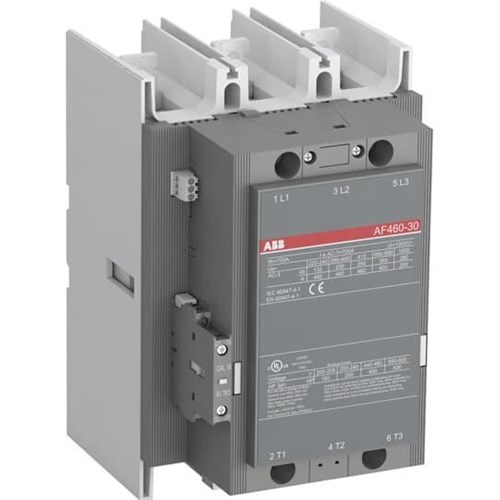

Product Type	Contactor
Brand	ABB
No. of Poles (Total)	3P
Rated Control Supply Voltage (Us)	100-250 V AC/DC
Rated Operational Current AC-1 <= 690V (Ie)	(690 V) 40 °C 700 A
Rated Operational Current AC-1 1000V (Ie)	(1000 V) 40 °C 700 A
Rated Operational Current AC-3 1000V (Ie)	(1000 V) 55 °C 200 A
Rated Operational Current AC-3 400V (Ie)	(415 V) 55 °C 460 A
Rated Operational Current AC-3 690V (Ie)	(690 V) 55 °C 400 A
Rated Operational Power AC-3 1000V (Pe)	(1000 V) 280 kW
Rated Operational Power AC-3 400V (Pe)	(415 V) 250 kW
Rated Operational Power AC-3 690V (Pe)	(690 V) 355 kW
Rated Frequency	50/60 Hz
No. of Auxiliary Contacts (NO/NC)	1 NO + 1 NC
Depth	216 mm
Height	278 mm
Weight	10.6 kg
Width	186 mm
Operating Temperature	-25 to 50 °C (Fitted with Thermal O/L Relay)
Standards and Approvals	IEC/EN 60947-1, IEC/EN 60947-4-1
