Specifications

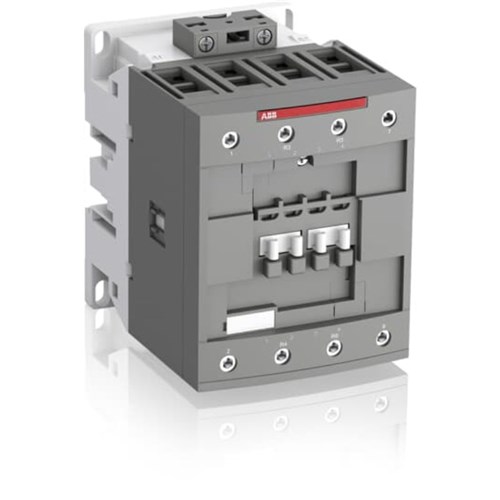

Product Type	4-Pole Contactors
Brand	ABB
No. of Auxiliary Contacts	0NO + 0NC
Rated Control Supply Voltage (Us)	50 Hz 24 ... 60 V60 Hz 24 ... 60 VDC Operation 20 ... 60 V
Rated Operational Current AC-1 <= 690V (Ie)	125 A
Rated Operational Current AC-3 1000V (Ie)	25 A
Rated Operational Current AC-3 400V (Ie)	80 A
Rated Operational Current AC-3 690V (Ie)	49 A
Rated Operational Power AC-3 1000V (Pe)	35 kW
Rated Operational Power AC-3 400V (Pe)	37 kW
Rated Operational Power AC-3 690V (Pe)	45 kW
Rated Frequency	50 / 60 Hz
No. of Poles	4P
Depth	116 mm
Height	125.5 mm
Weight	1.44 kg
Width	90 mm
Ambient Temperatures	-40 ... 70 °C
Standards and Approvals	IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 60947-1:22, CSA C22.2 No. 60947-4-1:22
