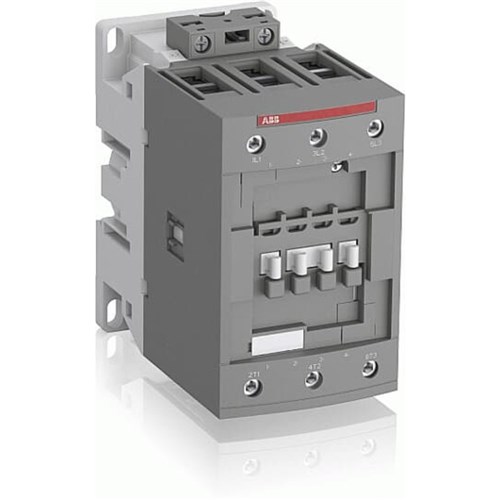

<p>When considering a reliable and efficient solution for your electrical control systems, the AF Contactors offer a robust option tailored to meet industrial and commercial needs. Designed with precision, these contactors handle demanding applications with ease, ensuring optimal performance across various settings.</p><p>The AF Contactors are engineered to operate at a rated voltage of 1000 VAC and support rated currents of 85 A, 100 A, or 125 A. This versatility makes them suitable for diverse electrical environments. They maintain their integrity under challenging conditions with a rated impulse withstand voltage of 8 kV and an insulation voltage of up to 1000 VAC or alternatively at 600 V.</p><p>One notable feature is their capacity to endure short-time current surges: they can withstand up to 1200 A for one second and manage continuous operations at lower levels such as 780 A for ten seconds or even sustain 140 A over fifteen minutes. This resilience ensures reliability during unexpected power fluctuations.</p><p>The contactor’s design includes a straightforward contact configuration of three normally open (3NO) contacts. Installation is made simple through screw-type terminals that provide secure connections. The main circuit requires a wire stripping length of 17 mm while the control circuit needs only 10 mm, facilitating easy setup and maintenance.</p><p>In terms of protection, these contactors comply with IP10 and IP20 degrees, safeguarding against foreign objects while offering moderate protection from dust ingress. They also adhere to an IP3 degree of pollution standard, making them suitable for use in environments where some level of contamination may occur.</p><p>Mounting is accomplished via screws, ensuring stability once installed within your system framework. With dimensions measuring a width of just 70 mm, height at 125.5 mm, and depth reaching only 116 mm, these compact units fit seamlessly into existing setups without requiring excessive space.</p><p>Compliance with international standards underscores their quality assurance; they meet IEC/EN standards including IEC/EN 60947-1 and IEC/EN 60947-4-1 as well as UL certifications UL60947-1 and UL60947-4-1 along with CSA C22.2 No. specifications ensuring global usability across various regulatory environments.</p><p>Additional features include an air thermal current rating at an impressive capacity of up to130 A along with coil consumption efficiency marked by minimal energy usage pegged at just4 VA enhancing operational cost-effectiveness over prolonged periods.</p><p>In summary the AF Contactors deliver dependable performance backed by rigorous standards ideal for professionals seeking durable components that integrate smoothly within complex electrical systems meeting both technical demands effectively without compromise on quality or safety.</p>
