Specifications

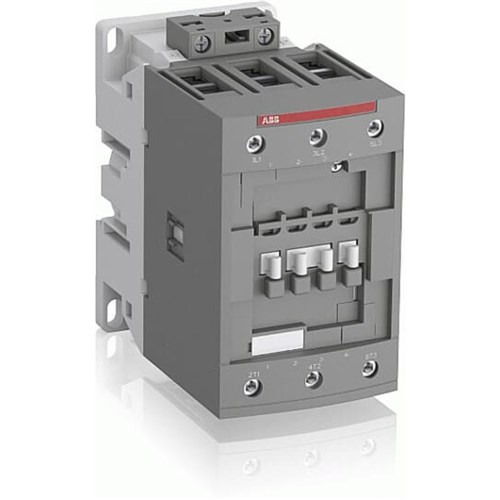

Product Type	AF Contactor
Brand	ABB
Contact Configuration	3NO
Degree of Protection	IP10
Depth	116 mm
Height	125.5 mm
Mounting Type	DIN Rail, Panel
Number of Poles	3
Power Loss	4.5-8.2 W
Rated Current	130 A
Rated Frequency	50/60 Hz
Rated Impulse Withstand Voltage	8 kV
Rated Insulation Voltage	1000 V
Rated Power	45 kW
Rated Voltage	24-60 VAC
Storage Temperature	-60 to 80 deg C
Terminal Type	Screw
Width	70 mm
