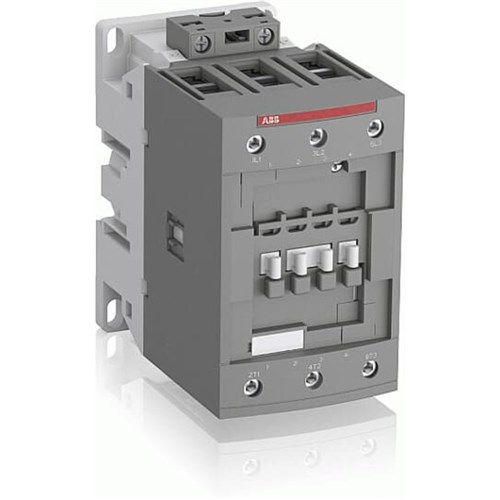

<p>The AF Contactor is a robust and reliable component designed for industrial and commercial applications, offering excellent performance under varying conditions. With a rated voltage of 1000 VAC, this contactor is well-suited for high-voltage operations, ensuring efficient power management across your systems. It boasts a versatile rated current range of 90 A to 130 A, accommodating diverse operational needs.</p><p>Operating at both 50 Hz and 60 Hz frequencies, the AF Contactor provides flexibility in different electrical environments. Its impressive rated impulse withstand voltage of 8 kV ensures resilience against transient overvoltages, enhancing system reliability. The contactor&#39;s insulation capabilities are notable with ratings of up to 1000 VAC and an additional rating at 600 V for specific requirements.</p><p>Designed to handle short-term overloads effectively, it supports a rated short-time withstand current ranging from 140 A for up to 15 minutes to an impressive peak of 1200 A for one second. This makes it suitable for applications where temporary surges are expected.</p><p>The contact configuration features three normally open (3NO) contacts, providing straightforward integration into existing setups. Terminals are screw-type with specified tightening torques: the control circuit requires a torque of 1.2 N-m while the main circuit demands a higher torque of 6 N-m to ensure secure connections.</p><p>Protection is prioritized with degrees IP10 and IP20 safeguarding against dust ingress while maintaining ease of access where necessary. The degree of pollution rating at IP3 further assures its suitability in environments subject to moderate contamination levels.</p><p>Installation is streamlined via screw mounting, making it compatible with various panel designs. Wire stripping lengths are specified as well: control circuits require a length of 10 mm while main circuits need up to 17 mm—details that facilitate precise wiring tasks during installation or maintenance.</p><p>Compact yet powerful, the dimensions stand at a width of just 90 mm by height at approximately 125.5 mm and depth measuring around 116 mm—ideal for space-constrained settings without compromising on capability or safety standards compliance.</p><p>This product adheres rigorously to international standards including IEC/EN and UL certifications alongside CSA approvals—testaments to its quality and global applicability across diverse markets.</p><p>With an air thermal current capacity reaching up to the full-rated current values and minimal coil consumption pegged at just four VA—the AF Contactor delivers energy efficiency alongside robust performance metrics critical within demanding operational contexts.</p>
