Specifications

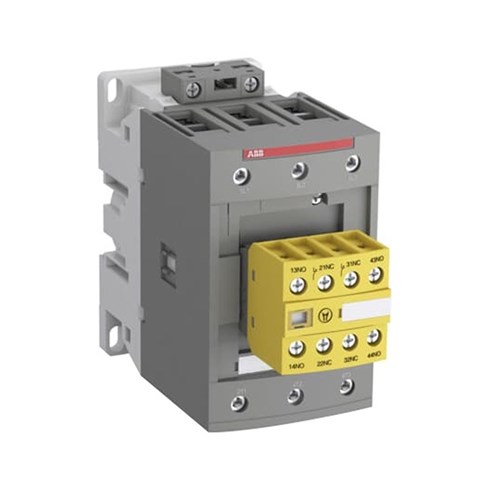

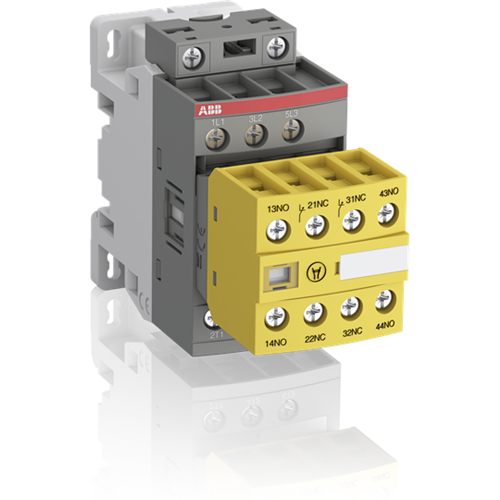

Product Type	Safety Contactors
Brand	ABB
No. of Auxiliary Contacts	4
Rated Control Supply Voltage (Us)	100 ... 250 VAC/DC
Rated Operational Current AC-1 <= 690V (Ie)	28 A
Rated Operational Current AC-3 400V (Ie)	12 A
Rated Operational Current AC-3 690V (Ie)	9 A
Rated Operational Power AC-3 400V (Pe)	5.5 kW
Rated Operational Power AC-3 690V (Pe)	7.5 kW
Rated Frequency	50 / 60 Hz
No. of Poles	3P
Depth	110.5 mm
Height	86 mm
Weight	0.32 kg
Width	45 mm
Ambient Temperature	-40 ... 70 °C
Standards and Approvals	IEC 60529, IEC 60947-1, EN 60529
