Specifications

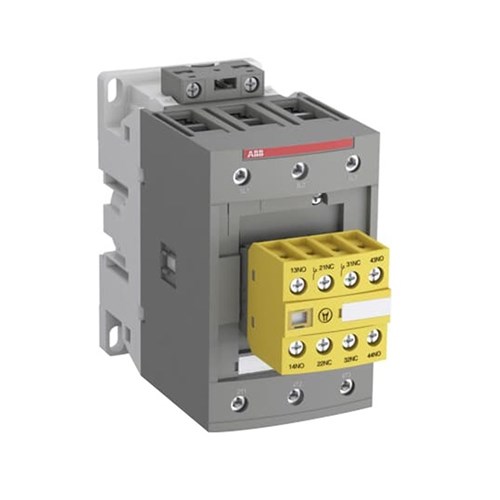

Product Type	Contactor
Brand	ABB
No. of Poles (Total)	3P
Rated Control Supply Voltage (Us)	24-60 V AC / 20-60 V DC
Rated Operational Current AC-1 <= 690V (Ie)	(690 V) 40 °C 125 A
Rated Operational Current AC-3 1000V (Ie)	(1000 V) 60 °C 25 A
Rated Operational Current AC-3 400V (Ie)	(415 V) 60 °C 80 A
Rated Operational Current AC-3 690V (Ie)	(690 V) 60 °C 49 A
Rated Operational Power AC-3 400V (Pe)	(400 V) 37 kW
Rated Operational Power AC-3 690V (Pe)	(690 V) 45 kW
Rated Frequency	50/60 Hz
No. of Auxiliary Contacts (NO/NC)	2 NO + 2 NC
Depth	149 mm
Height	125.5 mm
Weight	1.27 kg
Width	70 mm
Operating Temperature	-40 to 70 °C (Fitted with Thermal O/L Relay)
Standards and Approvals	IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 60947-1:22, CSA C22.2 No. 60947-4-1:22
