Specifications

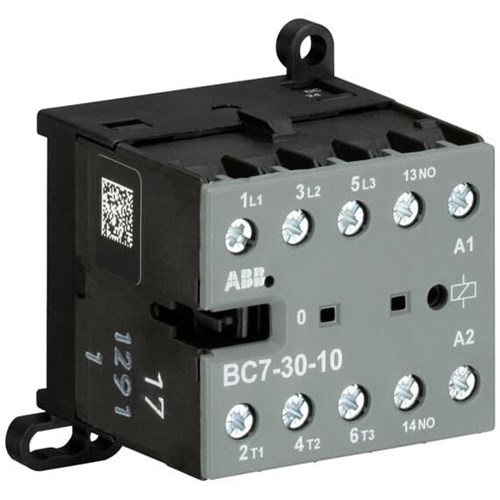

Product Type	Mini Contactor
Brand	ABB
No. of Poles (Total)	3
Rated Control Supply Voltage (Us)	24 V DC
Rated Operational Current AC-1 <= 440V (Ie)	40 °C 20 A
Rated Operational Current AC-1 <= 690V (Ie)	40 °C 6 A
Rated Operational Current AC-3 400V (Ie)	55 °C 9 A
Rated Operational Current AC-3 690V (Ie)	NO 55°C 3.5 A
Rated Operational Power AC-3 400V (Pe)	5.5 kW
Rated Operational Power AC-3 690V (Pe)	3 kW
Rated Frequency	50/60 Hz main; DC control
No. of Auxiliary Contacts (NO/NC)	1 NO
Depth	46.5 mm
Height	57.5 mm
Weight	0.175 kg
Width	52.5 mm
Ambient Temperatures	-25 ... +55 °C
Standards and Approvals	IEC/EN 60947-1; IEC/EN 60947-4-1; IEC/EN 60947-5-1; UL 60947-1; UL 60947-4-1
