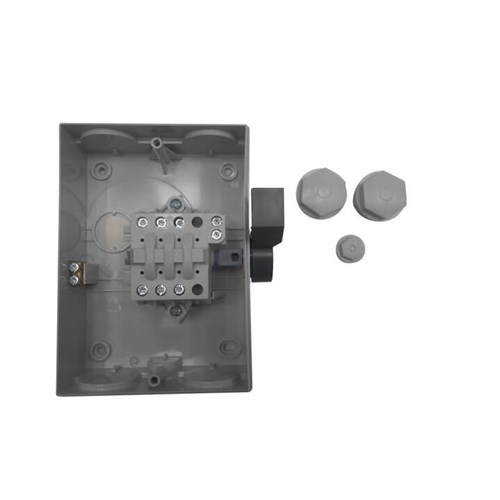

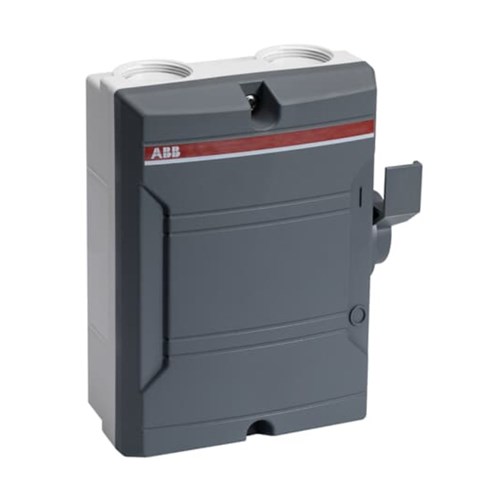

Specifications

Product Type	Enclosed switch disconnector
Brand	ABB
Application	Safety isolation and switch-disconnector applications
Rated Impulse Withstand Voltage (Uimp)	8 kV
Rated Insulation Voltage (Ui)	690 V
Utilization Category	AC-23
Contact Configuration	1NO+0NC
Neutral Type	Fixed
Rated Current	40 A
Rated Frequency	50/60 Hz
Rated Power	11 kW, 15 kW, 11 kW
Rated Voltage	690 V AC
No. of Poles	3P
Body Style	Enclosed
Cable Cross Section	0.75-10 sq-mm
Cable Entry	Top/Bottom; 2 x M32 / 2 x M32 + M16
Cable Size	M32, M16
Colour	Grey enclosure / grey side-operated handle
Connecting Capacity	Screw Clamp 0.75-10 sq-mm, Screw Clamp/PE Terminal 1 pc, 0.75-10 sq-mm
Connection/Termination	Screw terminals; 0.75 - 10 mm²
Handle Type	Side Operated
Material	Rigid polycarbonate enclosure
Mounting	Surface mounted enclosure
Rated Impact Resistance	IK08
Tightening Torque	1.2 N-m
Wire Stripping Length	7 mm
Depth	68 mm
Height	168 mm
Length	68 mm
Weight	0.41 kg
Width	138 mm
IP Rating	IP65
Standards and Approvals	IEC 60947-1, -3
Standards	IEC 60947-1 & -3
Certifications / Approvals	CE
