Specifications

Product Type	By-pass switch
Brand	ABB
Series	OT
Application	Safe maintenance of critical components while the load is supplied directly from the source
Position of Line Terminals	Top In - Bottom Out, Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)	12 kV
Rated Insulation Voltage (Ui)	1000 V
Rated Operating Voltage	1000 V
Rated Operation Power at AC-23, 400 V	220000 W
Rated Operational Current AC21-A (Ie)	400 A
Rated Operational Current AC22-A (Ie)	400 A
Rated Operational Current AC23-A (Ie)	400 A
Power Loss	10 W
Transition Type	Closed
No. of Poles	4
Mechanical Endurance	8000 cycles
Padlock Locking	Handle padlockable in the 0-position
Depth	371 mm
Height	205 mm
Width	284 mm
Pollution Degree	3
IP Rating	IP20
Standards and Approvals	IEC 60947-3

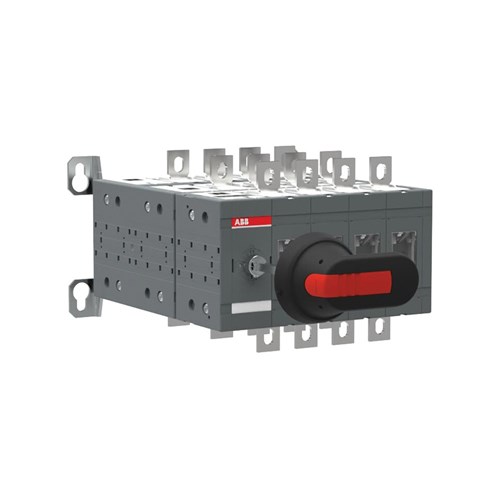

ABB BY-PASS SWITCH 400A 4P CLOSED TRANSITION C/W HANDLE & SHAFT OT400E04YLP
