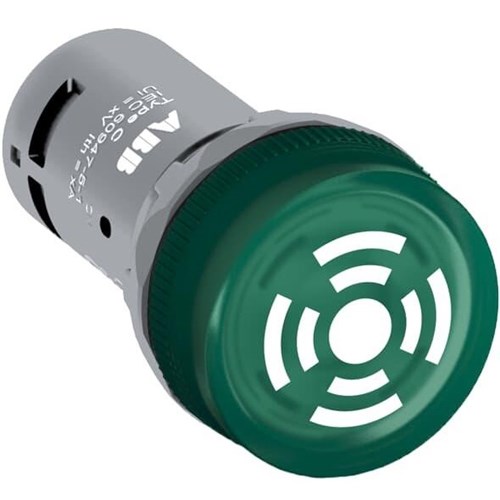

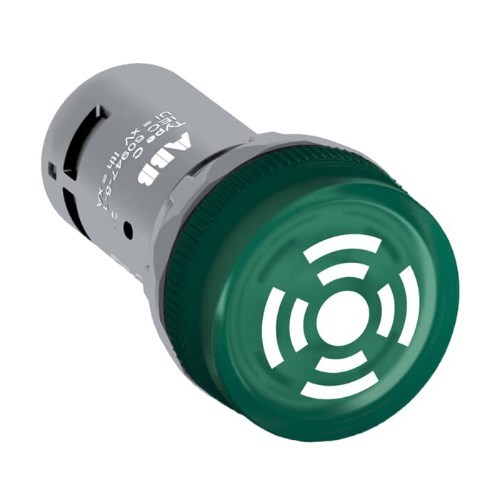

ABB CB1-600G Buzzer Illuminated 24VAC/DC Green Continuous Output 48mA 126mcd

Product Code: CB1-600G

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Buzzer
Brand ABB
Colour Green
Degree of Protection IP66 (Front), IP20 (Terminals)
Depth 55 mm
Height 30 mm
Illumination Illuminated
LED Colour Green
Light and Sound Output Type Continuous
Lumens 126 mcd
Operational Temperature -25 to 70 deg C
Rated Current 48 mA
Rated Frequency 50/60 Hz
Rated Voltage 24 VAC/VDC
Terminal Type Screw
Tightening Torque 0.9 N-m
Width 30 mm

Documents

IPD Product Catalogue V17
ABB Catalogue
ABB Datasheet
Instructions

Certificate

EU Declaration of Conformity
REACH Certification
