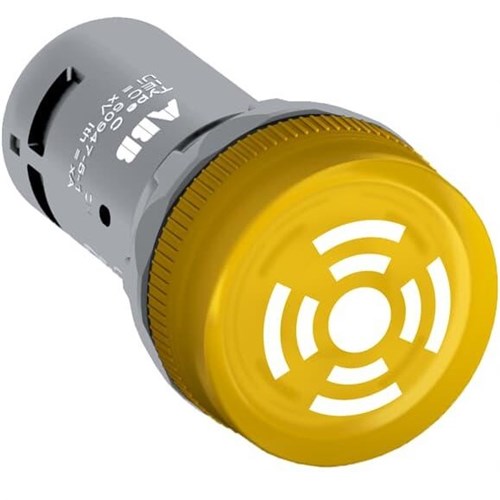

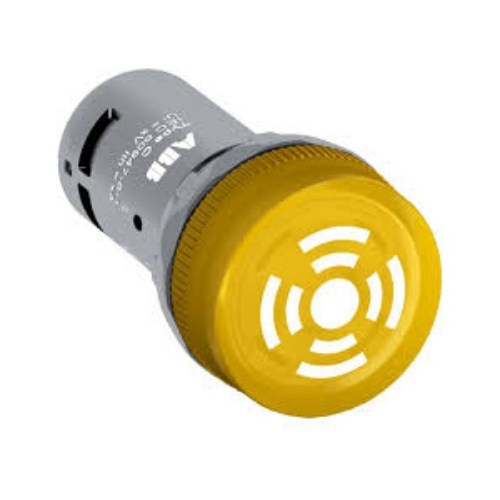

ABB CB1-610Y Buzzer Illuminated 24VAC/DC Yellow Pulsating Output 53mA 60mcd

Product Code: CB1-610Y

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Buzzer
Brand ABB
Colour Yellow
Degree of Protection IP66 (Front), IP20 (Terminals)
Depth 55 mm
Height 30 mm
Illumination Illuminated
LED Colour Yellow
Light and Sound Output Type Pulsating
Lumens 60 mcd
Operational Temperature -25 to 70 deg C
Rated Current 53 mA
Rated Frequency 50/60 Hz
Rated Voltage 24 VAC/VDC
Terminal Type Screw
Tightening Torque 0.9 N-m
Width 30 mm

Documents

IPD Product Catalogue V17
ABB Catalogue
ABB Datasheet
Instructions

Certificate

EU Declaration of Conformity
REACH Certification
RoHS Certification
